Panduit LC Fibre Optic Connectors Configurable Options

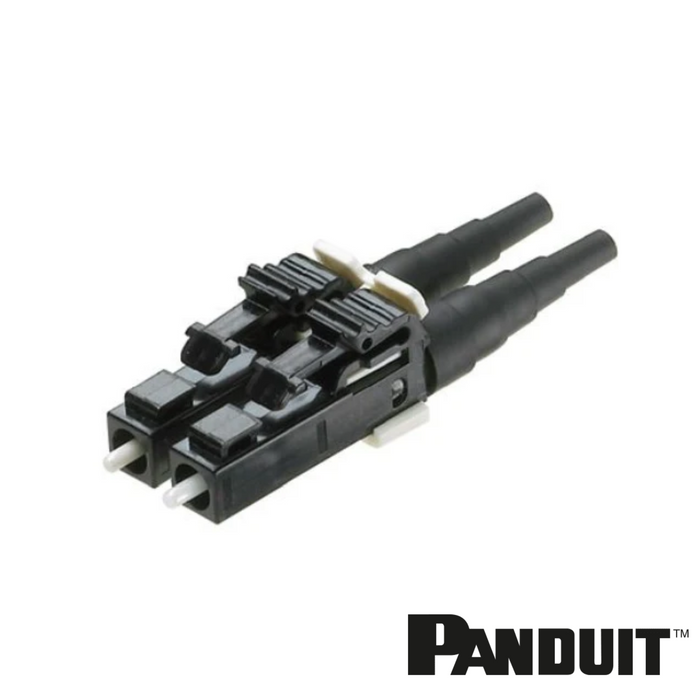

PANDUIT LC Fibre Optic Connectors - Field Polish

• 900μm tight-buffered fibre recommended
  250μm coated fibre, by using F250BT-C 250 micron fibre build-up tube kit or FO6CB or FO12CB fan-out kit

• LC field polish connectors with rear pivot latch available in Simplex or Duplex are field terminable.

• The fibres terminate in 1.25mm (LC) ceramic ferrules with non-optical disconnect functionality

• Anti-snag latch Low profile latch resists cable snagging

• Anaerobic adhesive field installation

• Average insertion loss of 0.1dB per mated pair for multimode and singlemode fibre per mated pair.

• Exceeds TIA/EIA-568-B.3 requirements

• Zirconia ceramic ferrule type

• Jacketed cable size 1.6mm – 2.0mm jacketed cable

• Field installable duplex clip with integrated polarity markers
