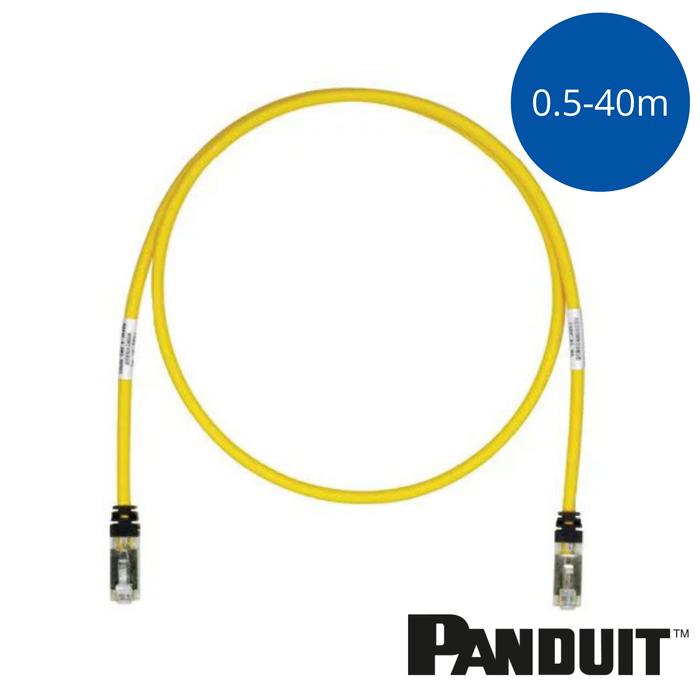

Panduit TX6A™ Cat6A 10Gig Shielded Patch Cord Selector - Yellow
SKU PT-STP6X0.5MYL
by Panduit
Fast delivery from stock MOQ's apply on some items
Need some help? Call us on 01403 754233
PANDUIT Category 6A 10 Gb/s S/FTP shielded patch cords
- TX6A™ 10Gig Shielded Patch Cords are a component of the Panduit TX6A™ 10Gig Shielded Copper Cabling System
- Over 150 options to choose from in 8 Colours: Black, Blue, Red, Yellow, Green, Grey (International Gray) and Violet.
- Lengths: 1m to 10m in 1m intervals, 0.5m, 1.5m & 2.5m. 5m intervals from 10m to 40m
- Exceeds requirements of ANSI/TIA-568-C.2 Category 6A, IEEE 802.3an-2006, and ISO 11801 Class EA channel standards
- Exceeds requirements of ANSI/TIA-568-C.2 Category 6A and IEC 61156-5 Category 6A component standards
- Meets requirements of IEEE 802.af and IEEE 802.3at for PoE applications
- Each patch cord is 100% performance tested and wired T568B
- Constructed of 26 AWG stranded, LSZH/CM shielded copper cable (nominal cable diameter is .23 inches) and TX6™ PLUS Shielded Modular Plugs for superior performance
- Cable includes overall metal shield that provides conductive path for grounding
- Plug meets all applicable ANSI/TIA/EIA-968-A requirements and exceeds IEC 60603-7 specifications
- Plug uses an integral pair manager to optimize performance and consistency by reducing untwisting of conductors within the plug
- Plug performance in centre of TIA/EIA component range, ensuring interoperability and 10GBASE-T Ethernet channel performance
- Labels on patch cords provide identification of performance level, length, and quality control number
- Patented tangle free latch prevents snags and provides easy release, saving time on frequent moves, adds, and changes
- Optional Patch Cord Colour Bands snap on and off individual patch cables offering endless color-coding options
