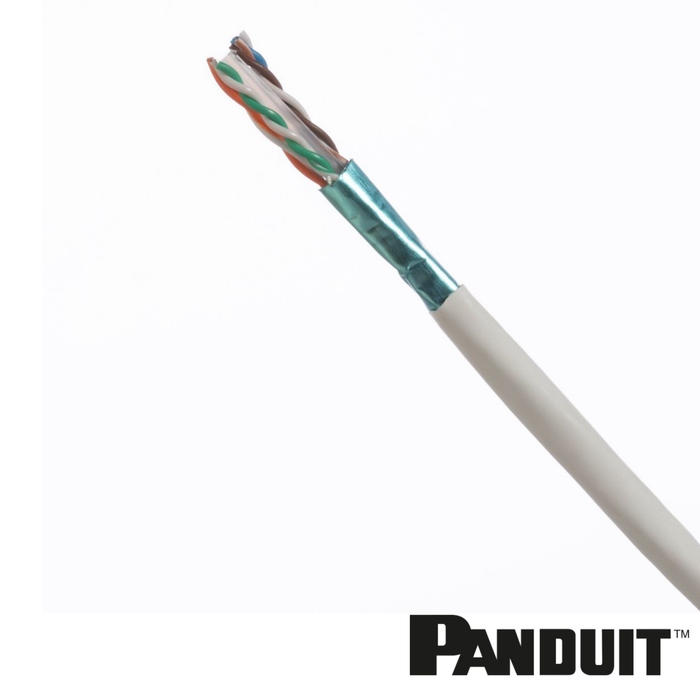

PANDUIT TX6A™ Category 6A U/UTP Copper Vari-MaTriX Cable | CCA | 500m | White

PANDUIT TX6A™ 10Gig U/UTP Vari-MaTriX Copper Cable Euroclass Cca White 305m

The Vari-MaTriX tape minimizes the cable diameter and suppresses alien crosstalk effects whilst retaining UTP electromagnetic interference immunity. The innovative cable design provides installation flexibility as cables can be routed in tight bundles through pathways and spaces.

·         Cat 6A 4-Pair U/UTP EN 50575 Euroclass Cca-s1a-d1-a1 305m Copper Cable.

             ·       Supplied in a white jacket.

·        Certified channel performance in a 4-connector configuration up to 100m and exceeds the requirements of ANSI/TIA-568.2-D Category 6A and ISO 11801 Class EA Standards

·         Meets requirements of IEEE 802.af, IEEE 802.3at and  IEEE 802.3bt for PoE applications

·         Cable diameter: 6.7mm nominal

·         Installation temperature range: 0°C to 60°C

·         Operating temperature range: -20°C to 75°C

·         Descending length cable markings enable easy identification of remaining cable which reduces installation time and cable scrap

·         Cable supplied on a 305m reel

• Panduit TX6A Cat 6A Vari-MaTriX U/UTP CCA White Copper Cable Data Sheet
