Panduit Mini-com Cat6a 10Gig Universal Shielded Module

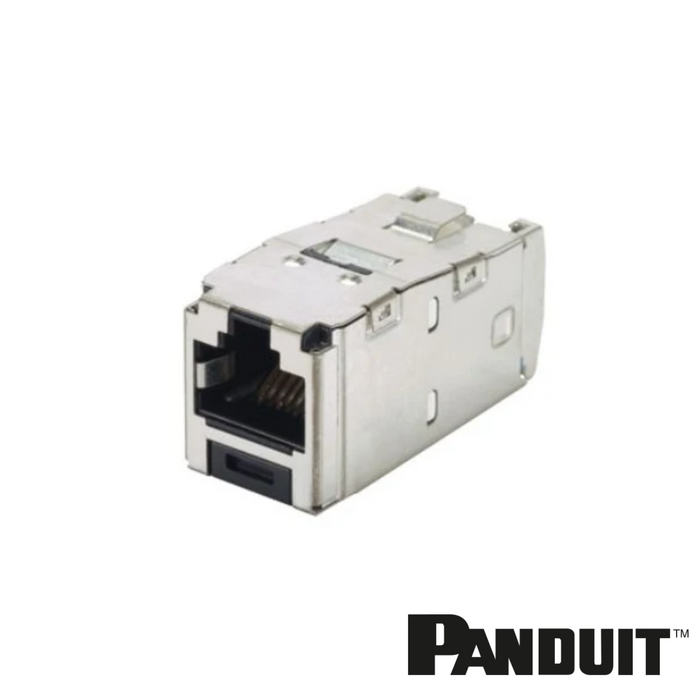

Panduit Mini-Com® TX6A™ 10Gig™ Shielded Jack Module

Mini-Com® TX6A™ 10Gig™ Shielded Jack Modules are a component of the TX6A™ 10Gig™ Shielded Copper Cabling System. This end-to-end system provides a cost effective medium for ensuring that network bandwidth needs are easily met today and tomorrow. This shielded system provides high performance, excellent EMI suppression and aids in secure data transmission. The Panduit solution helps ensure organizations efficiently and reliably meet their data transmission needs. With certified performance to the ISO 11801 Class EA, IEEE 802.3an-2006 and ANSI/TIA-568.2-D Category 6A standards, this system will support high bandwidth applications with data centers and connections to high end workstations such as stacking switches and switch-to-switch links, storage area networks, aggregation of Gigabit Ethernet channels, real-time intensive financial transactions, streaming video, animation, scientific modeling and medical imaging.

• Cat6A RJ45 10GB-S 8 position, 8 wire universal shielded module.
• Comes with an integral shield.
• This module exceeds requirements of ANSI/TIA-568-C.2 Category 6A, IEEE 802.3an-2006, and ISO 11801 Class EA channel standards
• Exceeds requirements of ANSI/TIA-568-C.2 Category 6A and IEC 61156-5 Category 6A component standards
• Meets requirements of IEEE 802.af and IEEE 802.3at for PoE applications
• 100% tested and individual QC number
• Utilise patent-pending enhanced Giga-TX™Technology for jack terminations which optimizes performance by maintaining cable pair geometry and eliminating conductor untwist
• Fully grounded and bonded to patch panel when installed in Panduit All Metal Modular Patch Panel
• Contacts plated with 50 microinches of gold for superior performance
• No punchdown tool required
• Can be re-terminated a minimum of twenty times
• Blue termination cap designates 10Gig™ Category 6A performance and provides positive strain relief; helps control cable bend radius and securely retains wires
• Terminate 4-pair, 22 – 26 AWG, 100 ohm, solid or stranded shielded twisted pair cable
• Universal termination cap is color-coded for T568A and T568B wiring schemes
• Integrated strain relief with wire cap provides 360° conductive path for grounding
• Accept 6 and 8-position modular plugs without damage
• Able to ground anywhere. For grounding shielded jack modules not installed in a Mini-Com® All Metal Modular Patch Panel, use the shielded jack module grounding kit, part number PT-CJSGK-XY
• Can be clearly identified with optional labels and icons
• Compatible with Mini-Com® Modular Patch Panels, Faceplates, and Surface Mount Boxes

• Panduit Cat6A TG Style Shielded Jack Module Datasheet
