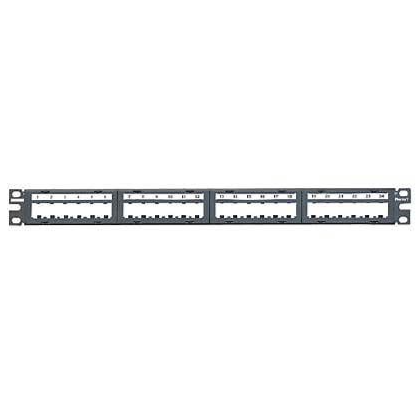

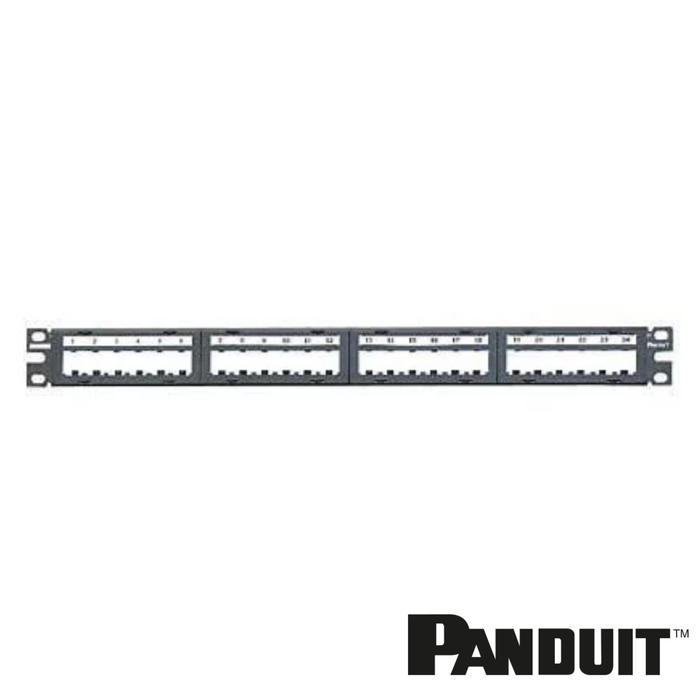

PANDUIT Mini-Com® Modular Unshielded M6 Patch Panel | 1RU | Selector

PANDUIT MINI-COM MODULAR PATCH PANELS WITH FACEPLATES

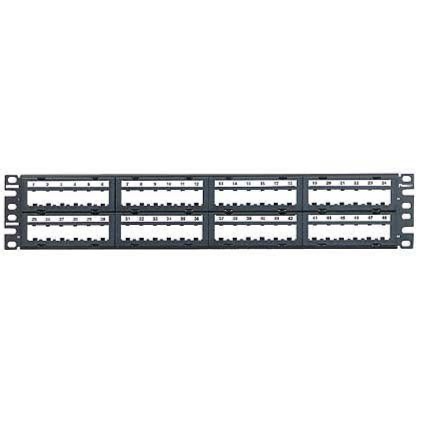

Consists of a metal panel with molded snap-in faceplates which can be front releasable. These Patch Panels accept all Mini-Com modules for UTP, STP, fibre or A/V applications and mount to standard 19” racks. Available in 24 and  48 standard density.

TECHNICAL INFORMATION:

·         Mounts to standard EIA 19” racks or 23” racks with optional extender brackets

·         Stamping is CRS and faceplate is ABS

·         Packaged with appropriate pre-installed snap-in faceplates, a set of mounting screws (#12-24), and label/label cover where applicable

KEY FEATURES AND BENEFITS:

·         Removable faceplates allow front accessibility to installed modules for easy moves, adds and changes

·         Compatible with all Panduit Mini-Com Modules

·         Patch cords can be routed directly into vertical cable management, increasing closet density and reducing the need for horizontal cable managers

·         Recessed design eliminates patch cord interference with cabinet doors and improves bend radius protection

·         Available with labels to accommodate various needs

·         Optional strain relief bars help support and manage cables

·         Optional filler panels fill unused rack openings for a clean consistent look

·         High density – more modules per rack space

• PANDUIT Mini-Com® Modular Patch Panel Datasheet
