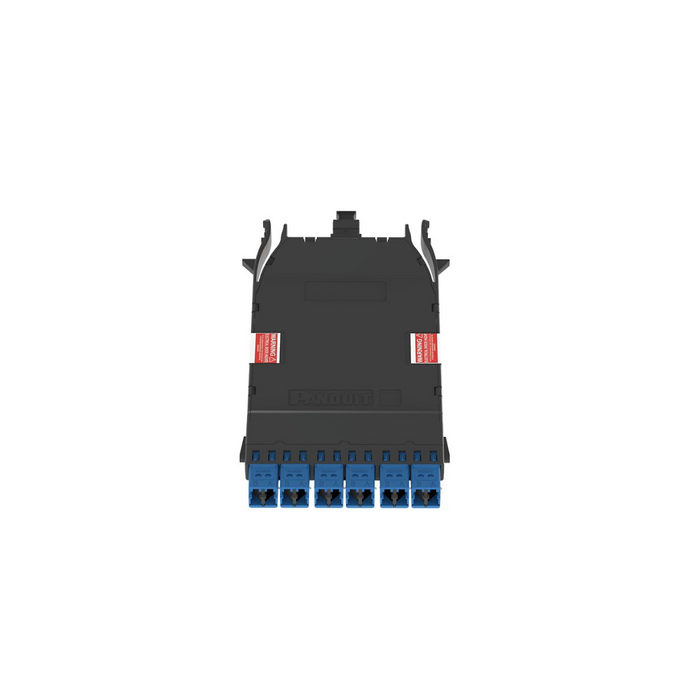

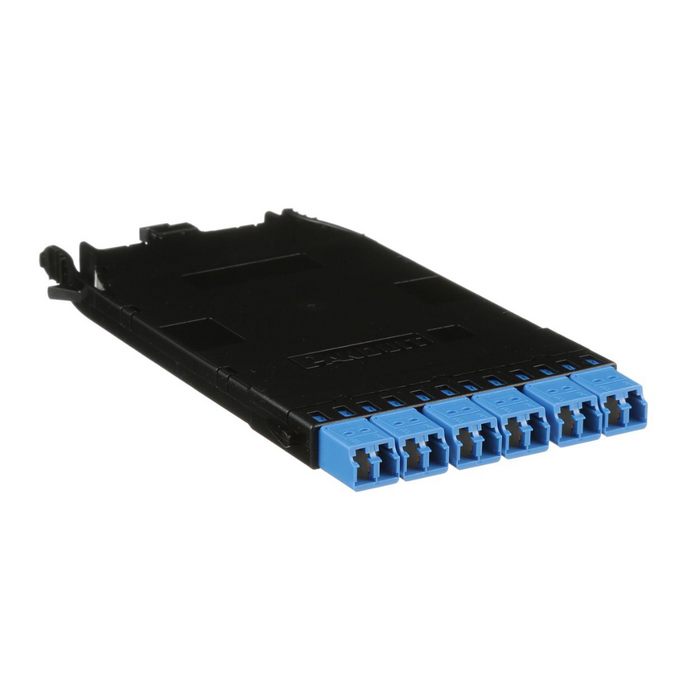

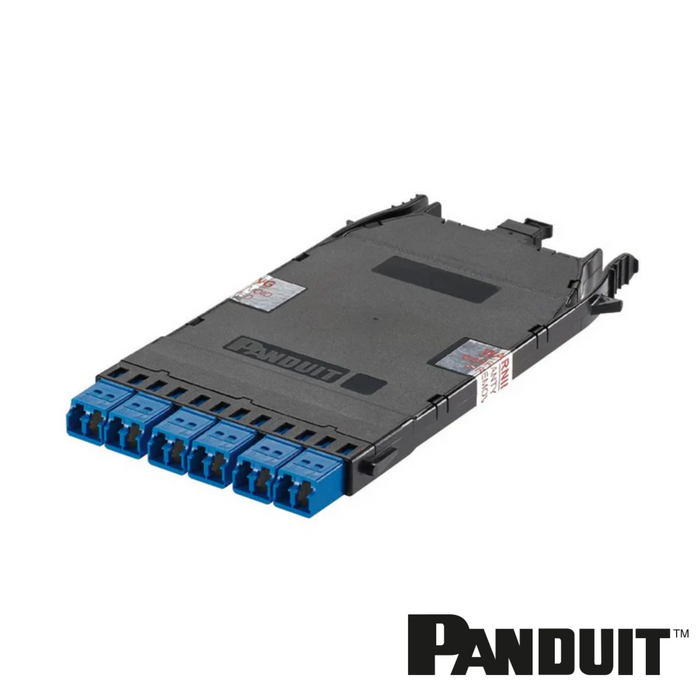

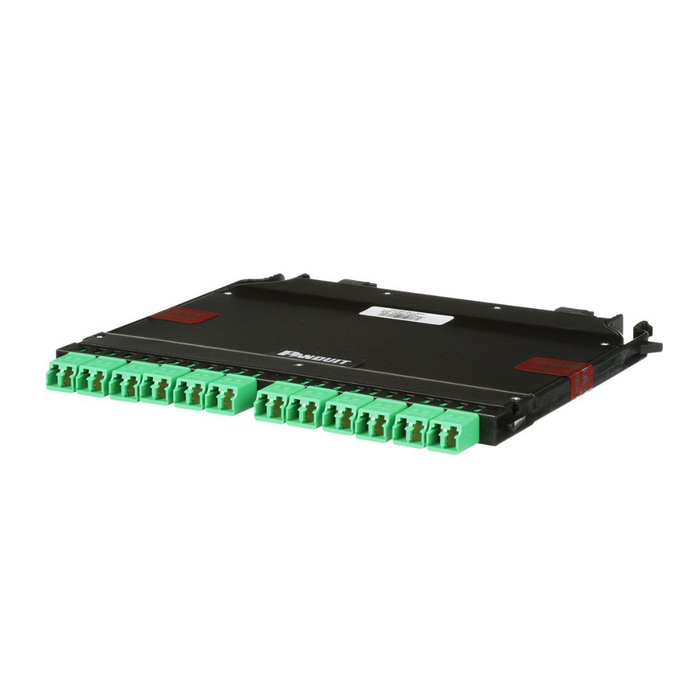

Panduit HD Flex™ OS2 Fiber Optic MPO to LC Cassette

SKU PT-FHC9N-12-10AS
by Panduit
Connectors and Fibre Count: 1 MPO to 6 Duplex LC - 12 Fibres
Polarity: Method A APC
Fast delivery from stock MOQ's apply on some items
Need some help? Call us on 01403 754233

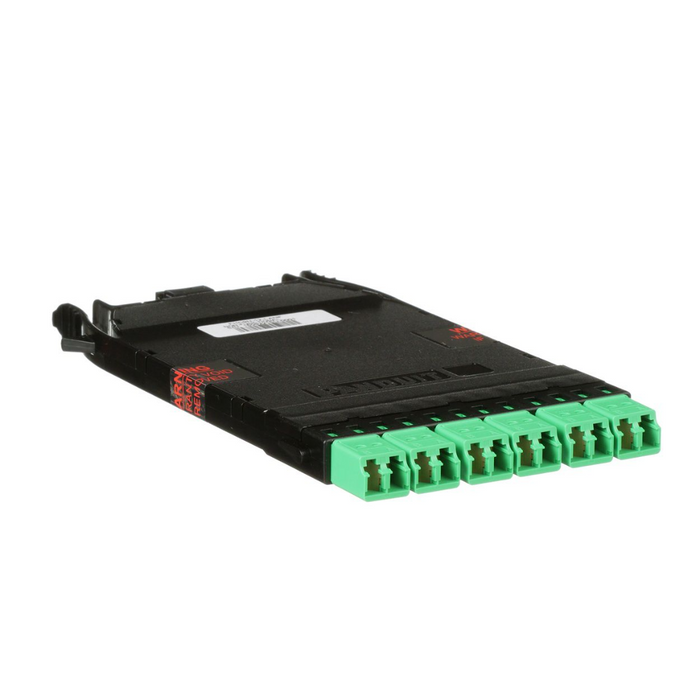

HD Flex™ OS2 Fiber Optic MPO to LC Cassettes

HD Flex™ Fiber Optic Cassettes offer a wide array of deployment options to support both Ethernet and Fibre Channel networks.
Cassette types are available with:
- 1 MPO to 6 duplex LC connectors, (6-port).

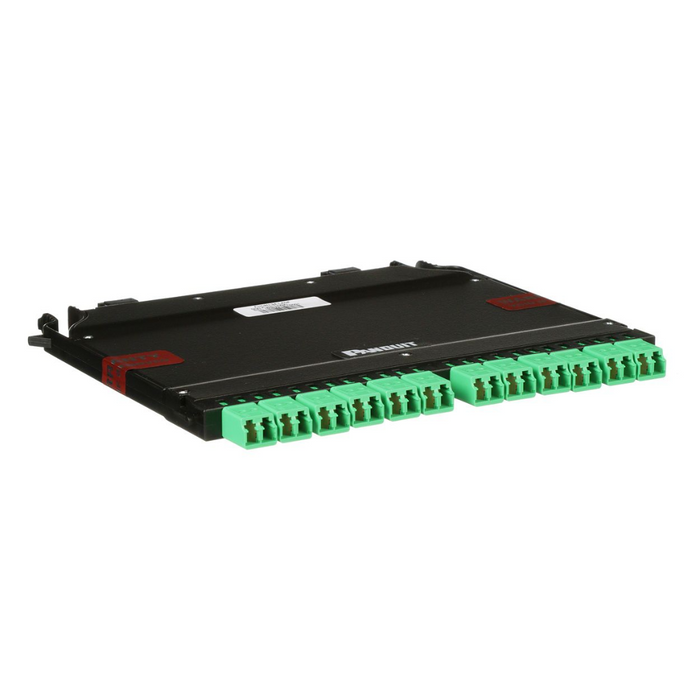

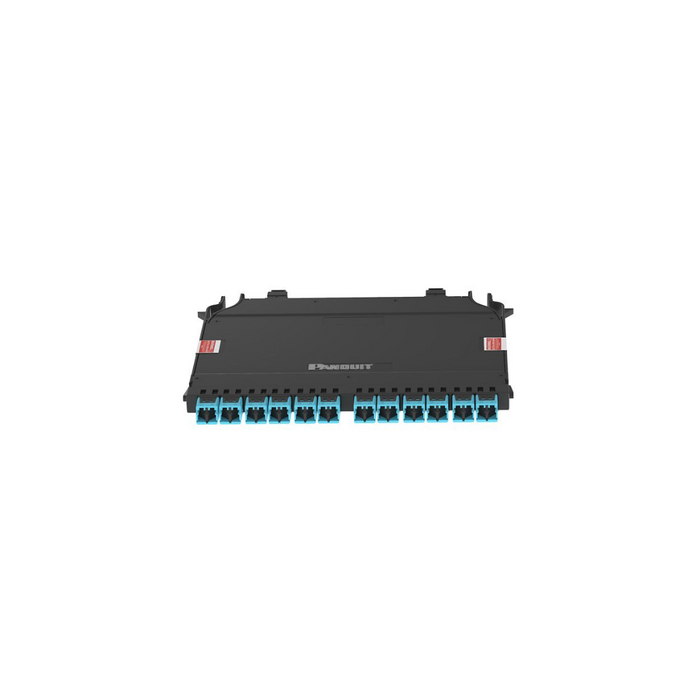

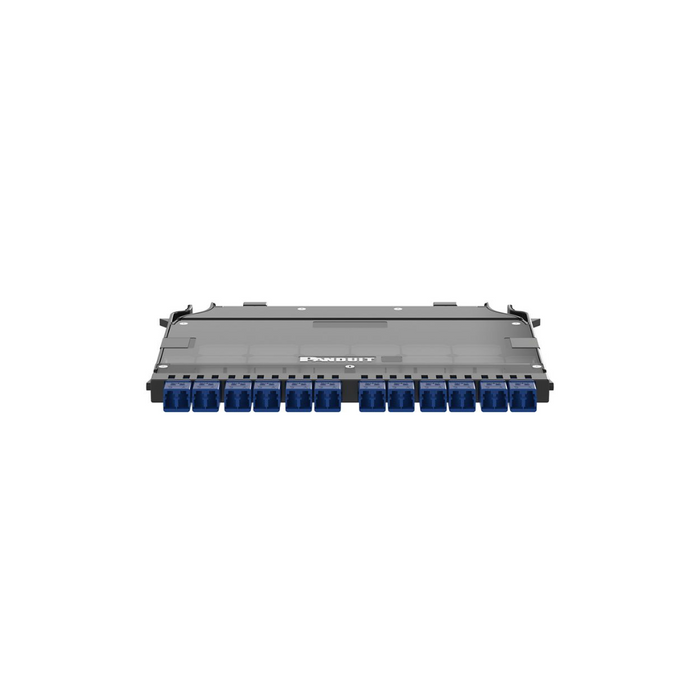

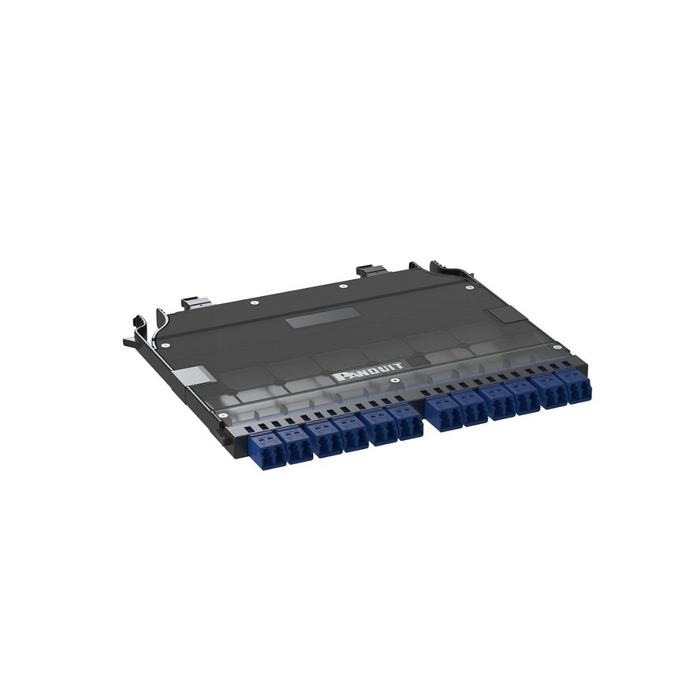

- 1 MPO, 2 MPO, and 3 MPO to 12 duplex LC connectors (12-port)
- 1 MPO to 4 duplex LC connectors to break out parallel optics applications (4-port),
- 6-port duplex LC cassettes for splice terminations.
- 6-port MPO and duplex LC fiber adapter panels (FAP) are also available.

Features

• Compatible with HD Flex™ Rack Mount Enclosures, Panels, and Zero RU Brackets

• LC adapters include integral shutters for dust protection and VFL light identification

• Low insertion of 0.75dB for standard singlemode cassette. Angle Polish (APC) options available.

• Return loss >55dB (singlemode)

• Adapter housing colors follow ANSI/TIA-568.3-D suggested color identification scheme

• Cassettes accessible from the front or back to streamline installation and migration from 10G to 40G/100G and beyond

• Performance test data provided with each cassette

• Lifetime traceability of test data to a QC numbers on each fiber cassette
