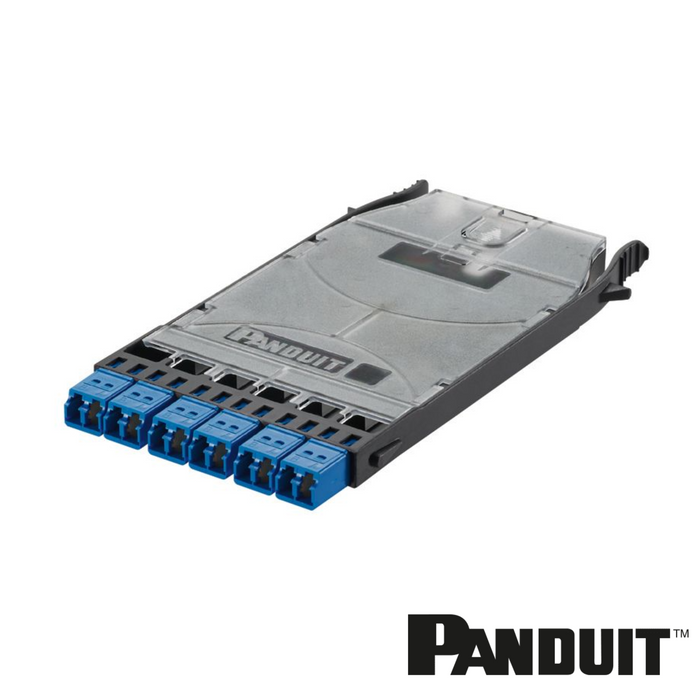

HD Flex™ OS2 LC Preloaded Splice Cassette

HD Flex™ Fiber Optic Cassettes offer a wide array of deployment options to support both Ethernet and Fibre Channel networks. Cassette types are available with:

·         1 MPO to 6 duplex LC connectors, (6-port)

·         1 MPO, 2 MPO, and 3 MPO to 12 duplex LC connectors (12-port)

·         1 MPO to 4 duplex LC connectors for breaking out parallel optics applications (4-port)

·         6-port duplex LC cassettes for splice terminations

·         6-port MPO and duplex LC fibre adapter panels (FAP) are also available

Features

•        Compatible with HD Flex™ Rack Mount Enclosures, Panels, and Zero RU Brackets

•        LC adapters include integral shutters for dust protection and VFL light identification

•        Low insertion loss of 0.35dB for standard singlemode cassette, 0.75dB for angle polish (APC) versions

•        Return loss >55dB (singlemode)

•        Adapter housing colours follow ANSI/TIA-568.3-D suggested colour identification scheme

•        Cassettes accessible from the front or back to streamline installation and migration from 10G to 40G/100G and beyond

•        Performance test data provided with each cassette

•        Lifetime traceability of test data to a QC numbers on each fibre cassette
