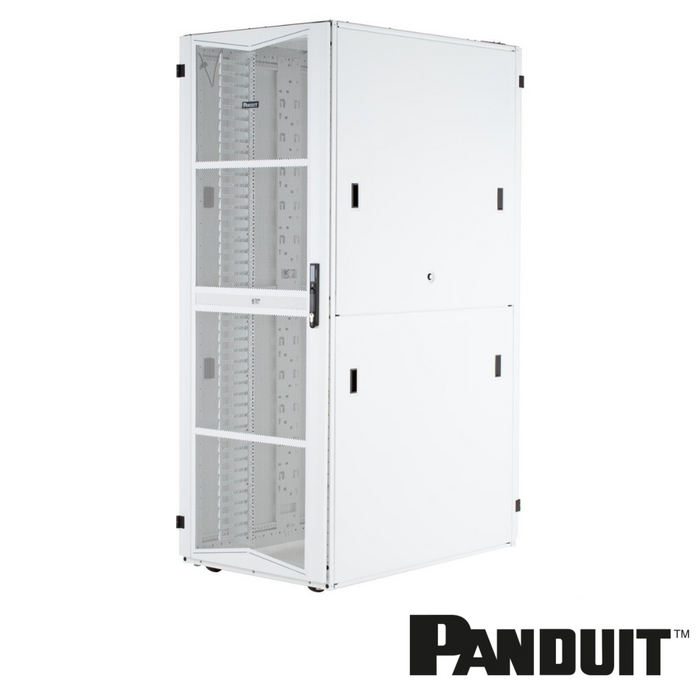

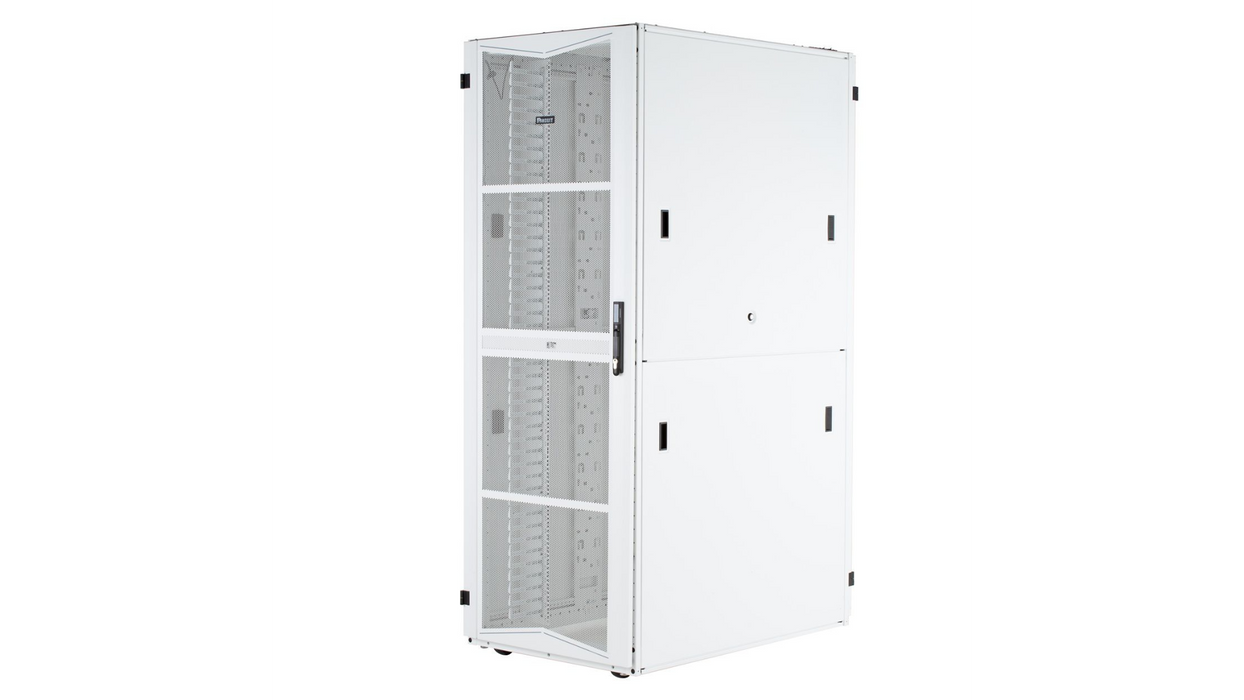

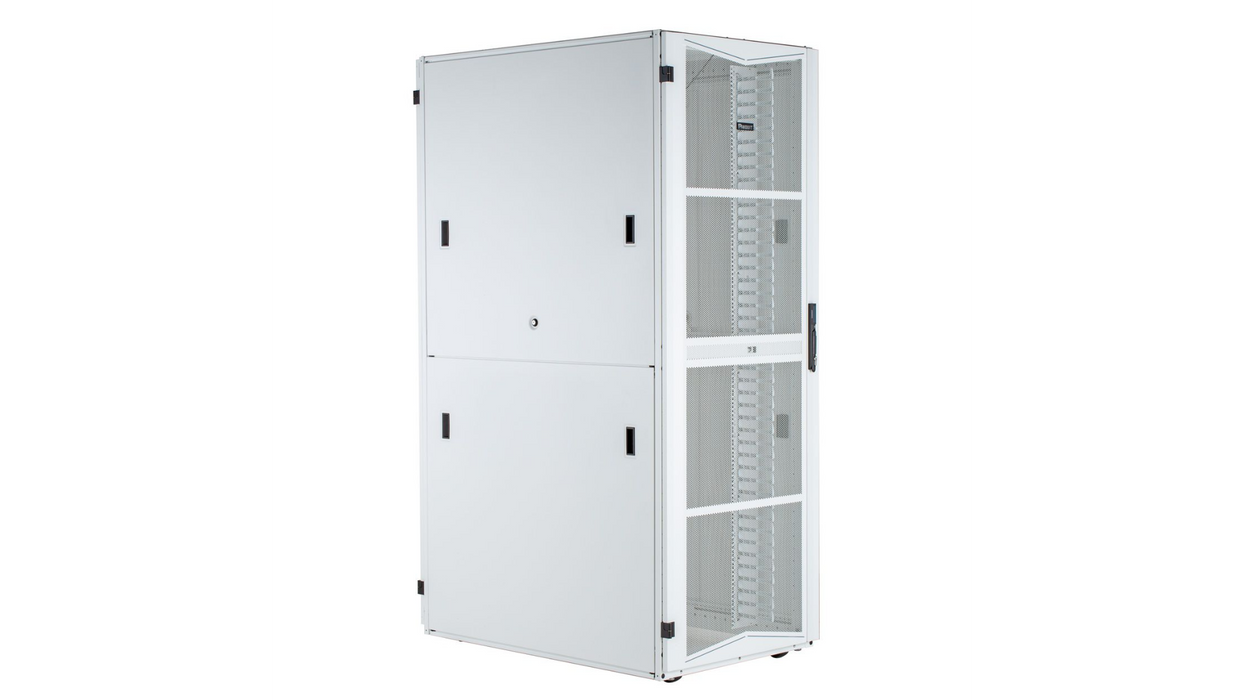

PANDUIT FlexFusion™ XG Series Cabinet - 800mm wide
The FlexFusion™ XG range of cabinets consist of a welded and assembled steel frame construction. They are available in 600mm, 700mm, and 800mm widths, 1070mm and 1200mm depths and 42 RU, 45 RU, 48 RU, and 52 RU heights.
The top of cabinet is available with either moulded edge protection and snap-in covers for CoolBoot® Grommet Cable Seal or brush cable seal and rear lift-up lid for PDU cable lay-in.

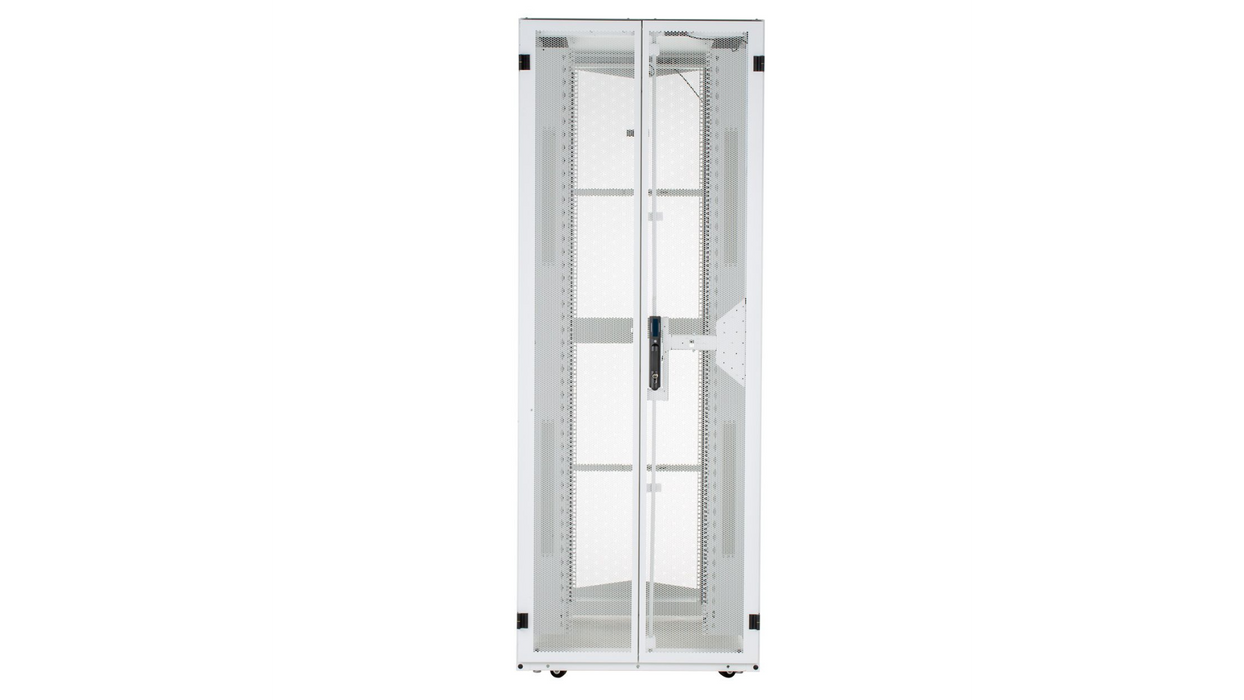

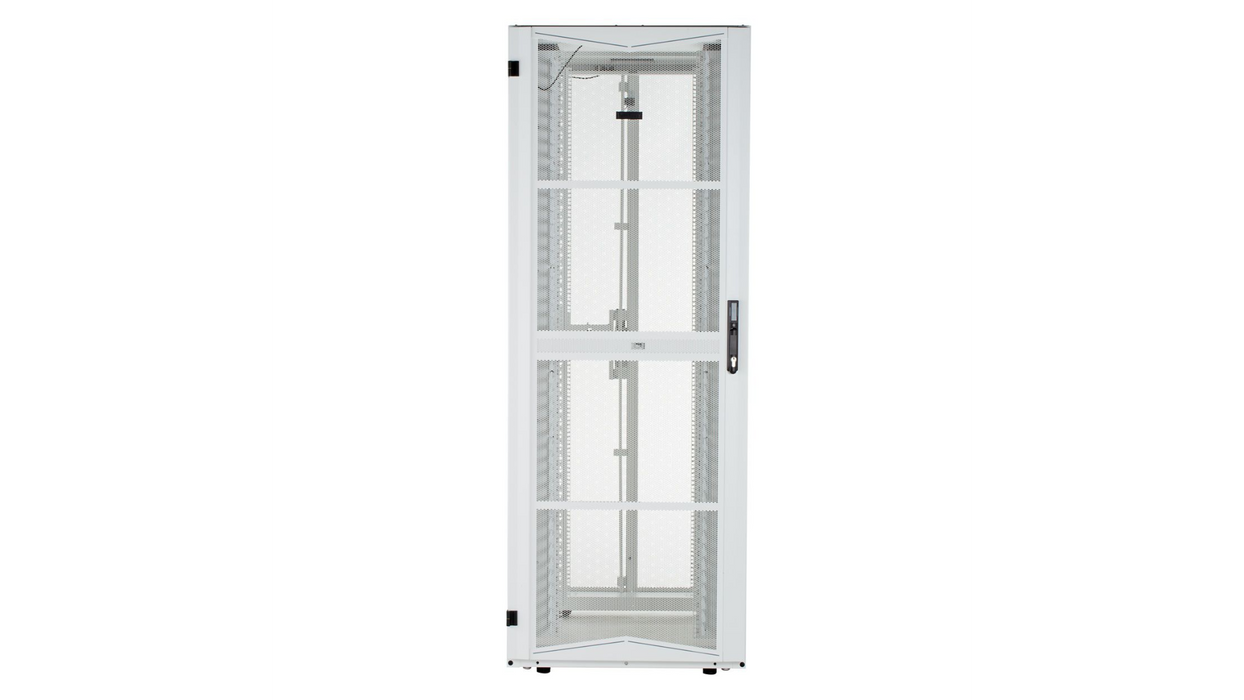

Available options includes front single hinged door and rear split-hinged doors with 80% open perforation, horizontally split side panels, cable management fingers, vertical cable manager bracket, PDU mounting bracket and casters.
The entire cabinet is electrically bonded without the use of bonding wires.
Key features include:
- Best-in-class static load rating of 1591 Kg / 3,500 lbs. and 1136Kg / 2,500 lbs. rolling load
- 80% open perforated doors assures maximum airflow thru the cabinet for high thermal application.
- Rapid deployment and easy to adjust equipment rails with tool-less or standard hardware fastener, tool-less vertical cable manager bracket, and tool-less top cap rear entry.
- The cabinet is available in a wide range of sizes and options for hot aisle/cold aisle or thermal containment deployment.
- Configure to order platform to achieve the cabinet to your exact specification.
- Cabinets and accessories are integrally bonded without the use of grounding wires to provide a safe and reliable network while reducing installation costs.
- Cabinets are powder coated in a durable, low maintenance polyester epoxy paint available in Black (RAL9005) or White (RAL9003).
PRODUCT SELECTION
The SKU's below are configured as standard with 2 side panels, front single hinge and split rear mesh doors and castors. Variants of the SKU's below can also be configured for door, side panels and castors. Additionally, the last four digits of the SKU's (-XXXX) will enable the cabinet to be further configured for Lock type, Cable Seals, PDU brackets and Cable Managers. Panduit's cabinet configurator can be accessed here:
https://configure.panduit.com/config/cabinet/cabinetXG/cabinetXGModel
See also the attached data sheet.
We recommend contacting our specialists at Networks Centre who will assist you in spec'ing out your requirement fully.
