Panduit Fibre Optic Pigtails

All Panduit patch cords and pigtails are tested to support network transmission speeds up to 10Gb/s for link lengths up to 300 meteres with an 850nm source per IEEE 802.3ae 10GbE as standard.

Features:

• The Panduit pigtails pass all TIA/EIA-568-B.3 performance requirements.
• Insertion loss per connection:

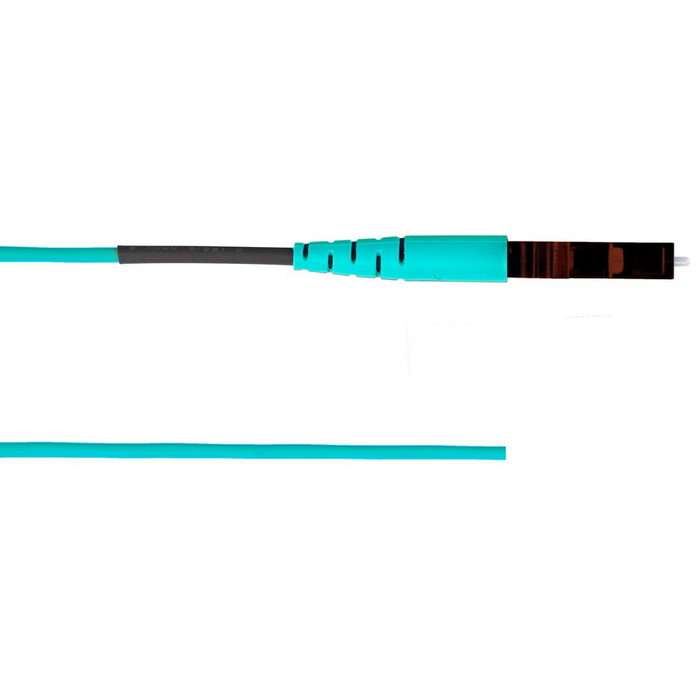

  0.15dB max. (Multimode - Standard IL)
  0.10db max. (Multimode - Ultra IL)

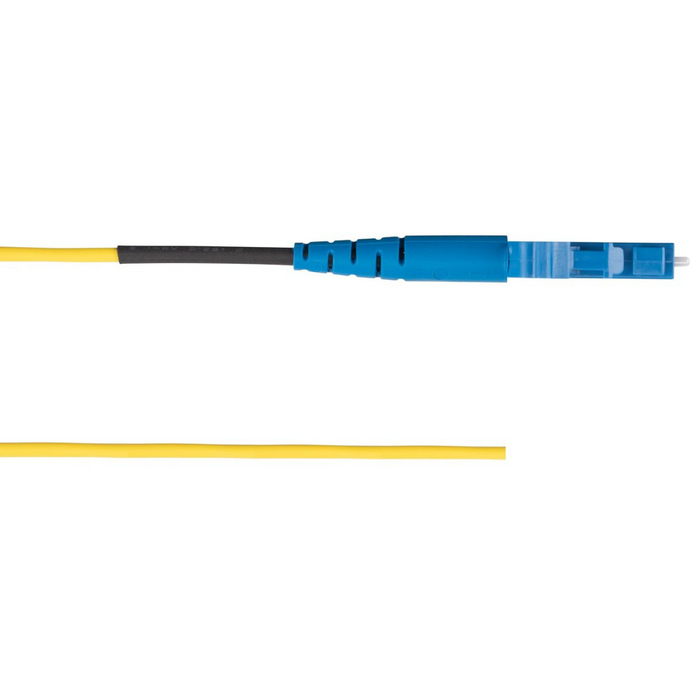

  0.25dB max. (LC singlemode)

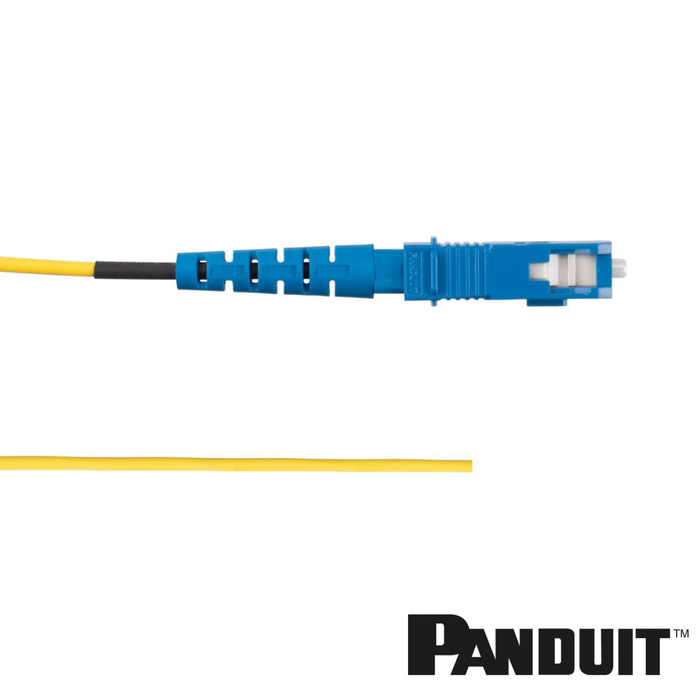

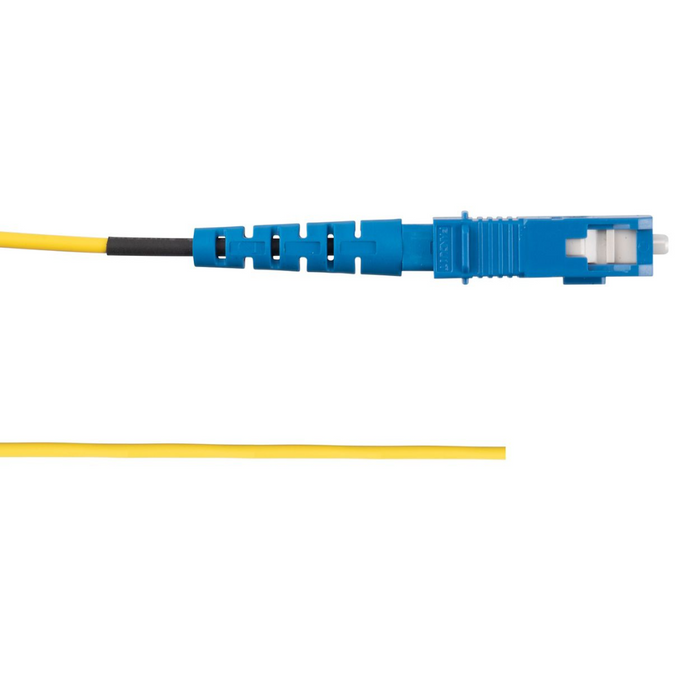

  0.50dB max. (SC singlemode)
• Backward compatible for use with all 50/125µm system requrirements.
• Factory terminated and 100% tested for insertion loss.
• Insertion loss data recorded for every multimode patch cord.
• Lifetime traceability of test data to a Q.C number on each fibre cassette.
• SC Duplex patch cords include SC Duplex Clips to maintain polarity.
• Highest quality flame retardant fibre optic cable with tight buffered coating on each optical fibre.
