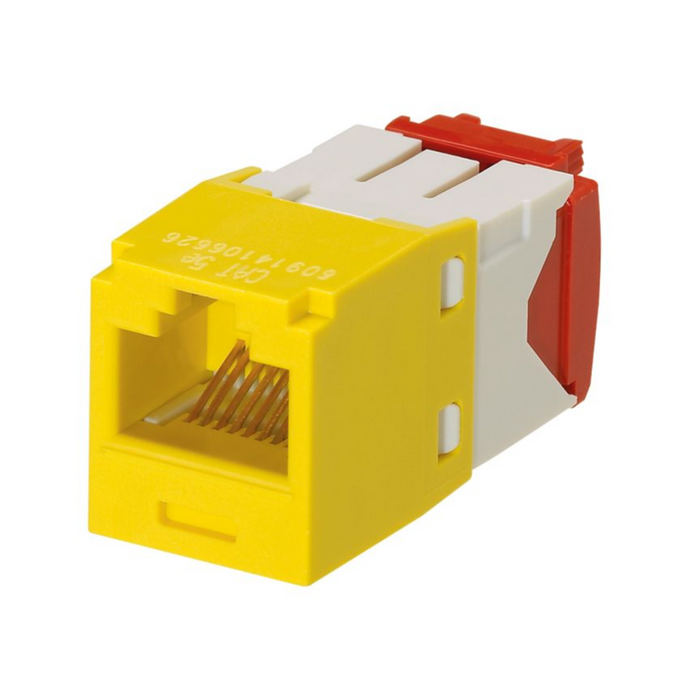

PANDUIT Mini-Com® Cat5e RJ45 Universal Module | Selector

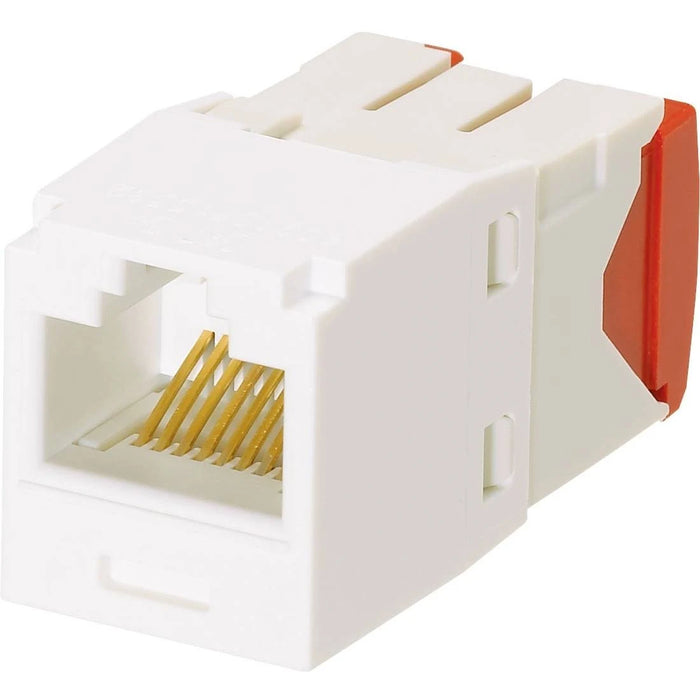

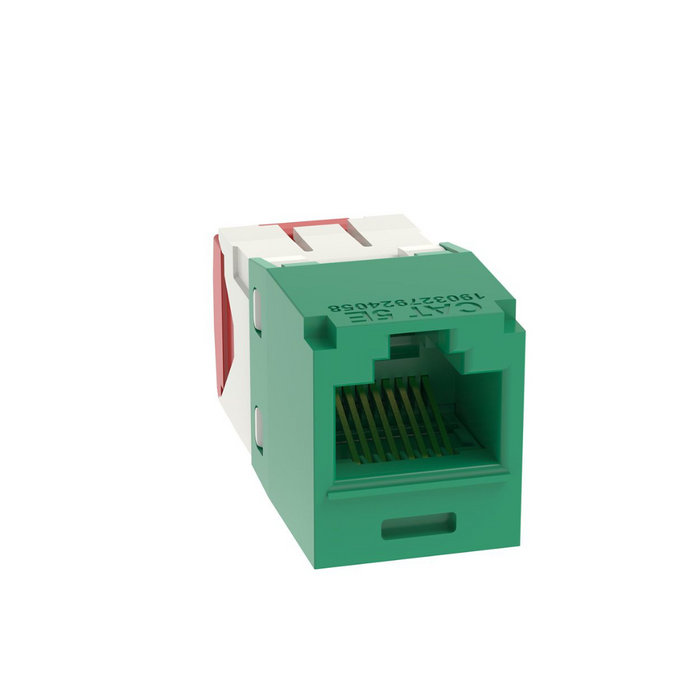

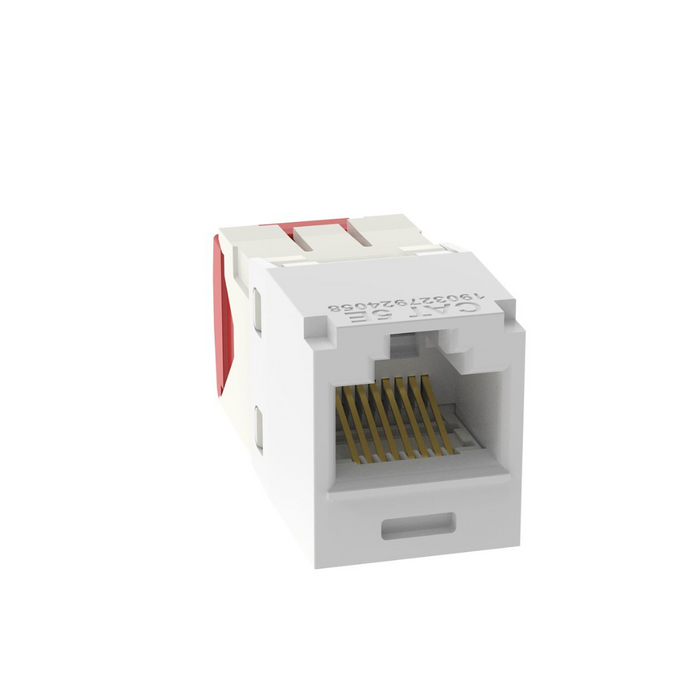

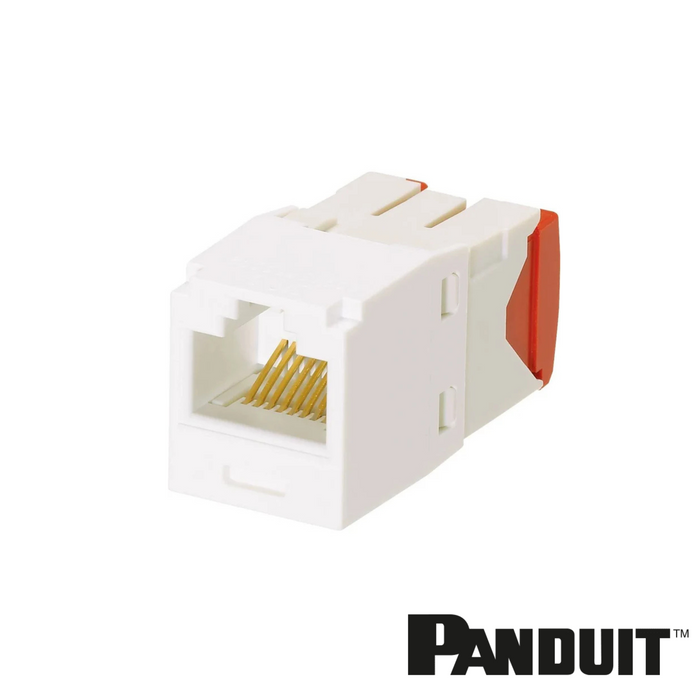

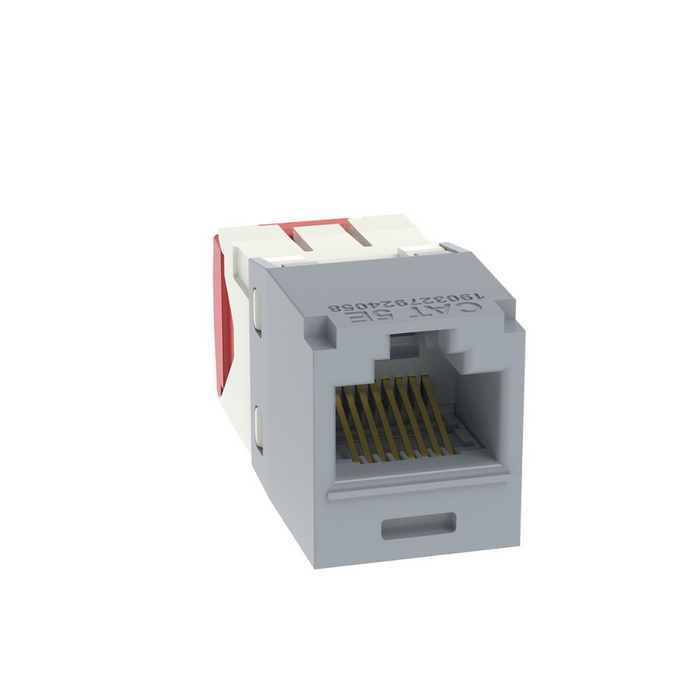

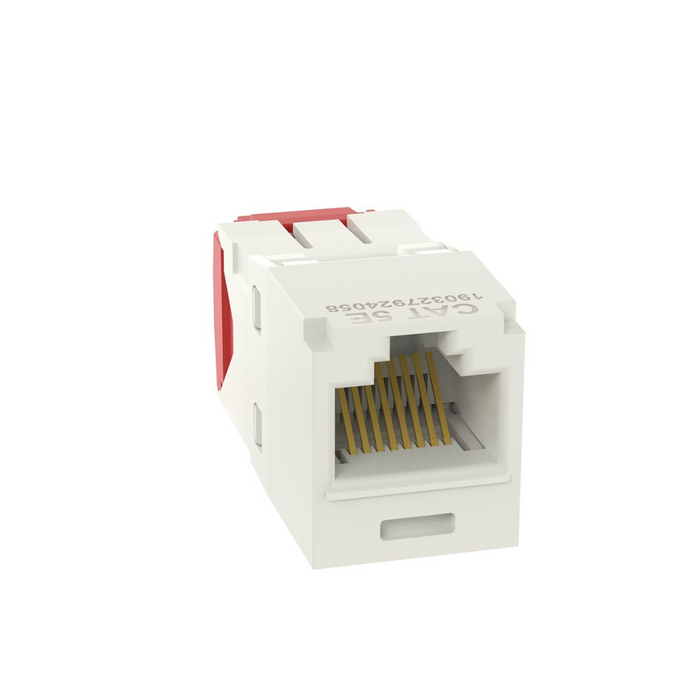

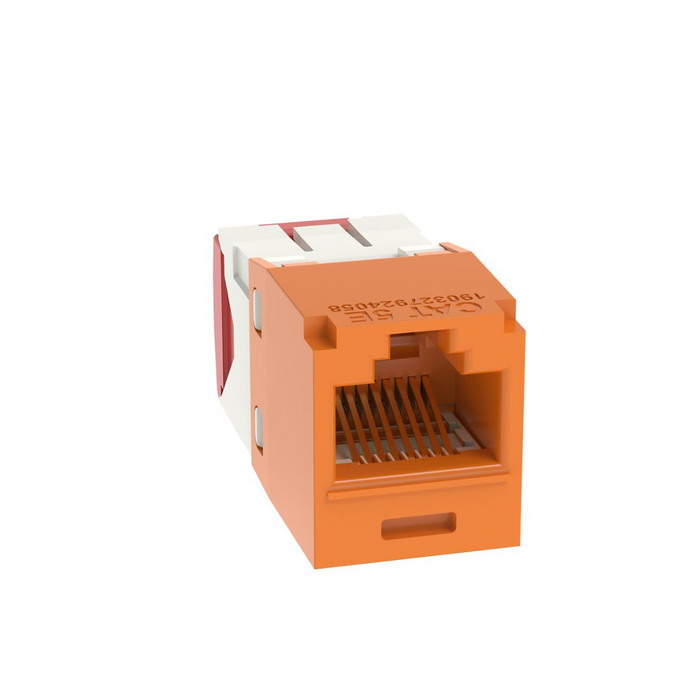

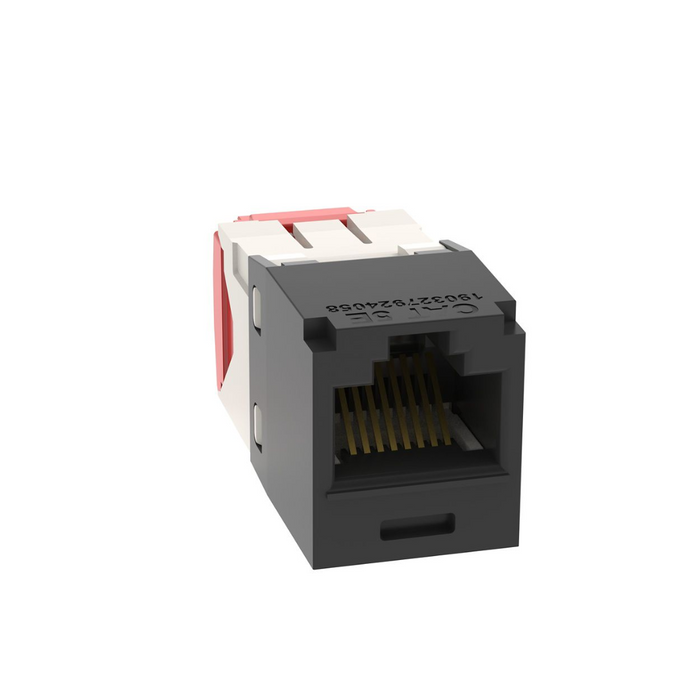

Panduit PanNet Cat5e Universal Module

·         This MiniCom Jack comes with RJ45, 8 position, 8 wire universal module.

·         The Jack module exceeds requirements of ANSI/TIA-568-C.2 Category 5e, IEEE 802.3an-2006, and ISO 11801 Class D channel standards

·         Also exceeds requirements of ANSI/TIA-568-C.2 Category 5e and IEC 61156-5 Category 5e component standards

·         Meets requirements of IEEE 802.af and IEEE 802.3at for PoE applications.

·         Each Jack is 100% tested to ensure NEXT and RL performance and is individually serialized for traceability.

·         Utilize patent-pending enhanced Giga-TX™Technology for jack terminations which optimizes performance by maintaining cable pair geometry and eliminating conductor untwist

·         The Panduit Jack contacts plated with 50 microinches of gold for superior performance.

·         No punchdown tool is required.

·         An optional termination tool can reduce termination time by 25%, ideal for high volume installations.

·         The Jack can be re-terminated a minimum of 20 times.

·         Terminate 4-pair, 22 – 26 AWG, 100 ohm, solid or stranded twisted pair cable

·         The Jack will accept 8 and 8 position modular plugs without damage.

·         Compatible with Mini-Com® Modular Patch Panels, Faceplates, and Surface Mount Boxes

• Category 5e, Rj45, 8-position, 8-wire Universal Module Datasheet
