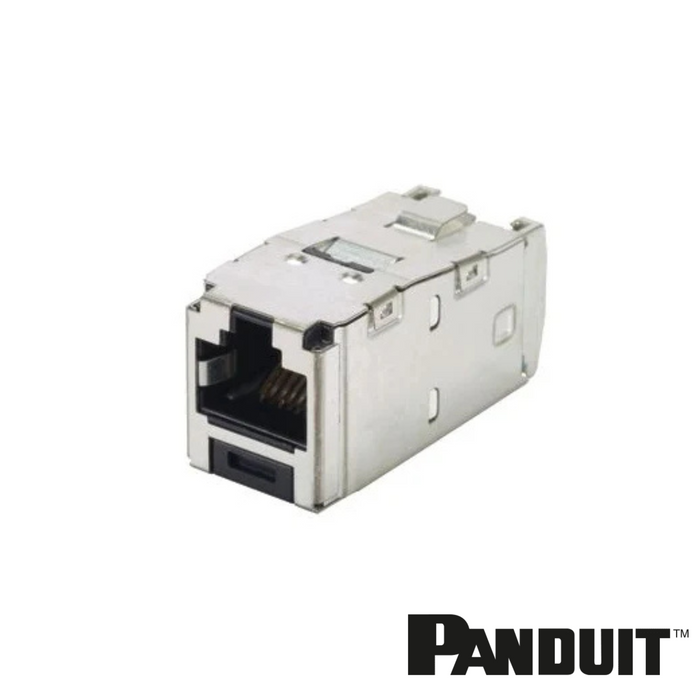

Panduit Cat6 RJ45 Universal Shielded Black Module

Panduit Mini-Com TX6 Plus Cat6 Shielded Module

• Cat6 RJ45, 8 position, 8 wire universal shielded module.
• Integral shield.
• Available in black.
• The module exceeds requirements of ANSI/TIA-568-C.2 Category 6, IEEE 802.3an-2006, and ISO 11801 Class E channel standards
• Exceeds requirements of ANSI/TIA-568-C.2 Category 6 and IEC 61156-5 Category 6 component standards
• Meets requirements of IEEE 802.af and IEEE 802.3at for PoE applications
• 100% tested.
• Utilise patent-pending enhanced Giga-TX™Technology for jack terminations which optimizes performance by maintaining cable pair geometry and eliminating conductor untwist
• Fully grounded and bonded to patch panel when installed in Panduit All Metal Modular Patch Panel
• Contacts plated with 50 microinches of gold for superior performance
• No punchdown tool required.
• Optional termination tool (TGJT) reduces termination time by 25%, ideal for high volume installations
• Can be re-terminated a minimum of twenty times
• Off white termination cap designates Category 6 performance and provides positive strain relief; helps control cable bend radius and securely retains wires
• Terminate 4-pair, 22 – 26 AWG, 100 ohm, solid or stranded shielded twisted pair cable
• Universal termination cap is color-coded for T568A and T568B wiring schemes
• Integrated strain relief with wire cap provides 360° conductive path for grounding
• Compatible with Mini-Com Modular Patch Panels, Faceplates, and Surface Mount Boxes To ensure optimal performance
• Can be clearly identified with optional labels and icons

• Panduit Mini-Com TX6 Cat6 Shielded Jack Datasheet
