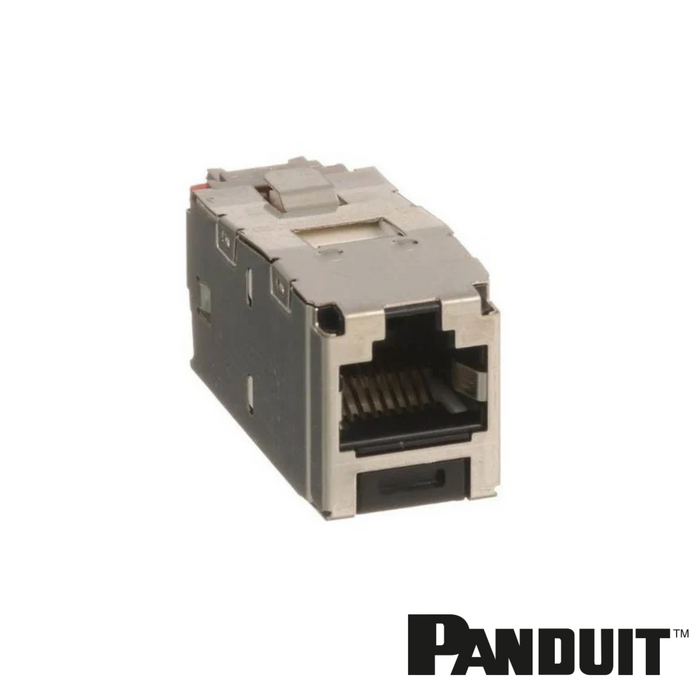

Panduit Cat5e, RJ45, 8-position, 8-wire Universal Shielded Integrated Shield

Panduit Cat5e Shielded Module

The Panduit Cat5e Shielded Module is part of our Copper Cabling range andomes with RJ45, 8 position and 8 wire universal module with integrated shield

Features

• Available in black.
• Exceeds requirements of ANSI/TIA-568-C.2 Category 5e, IEEE 802.3an-2006, and ISO 11801 Class D channel standards
• Exceeds requirements of ANSI/TIA-568-C.2 Category 5e and IEC 61156-5 Category 5e component standards
• Meets the requirements of IEEE 802.af and IEEE 802.3at for PoE applications
• Utilise patent-pending enhanced Giga-TX™Technology for jack terminations which optimizes performance by maintaining cable pair geometry and eliminating conductor untwist
• Fully grounded and bonded to patch panel when installed in Panduit All Metal Modular Patch Panel
• Contacts plated with 50 microinches of gold for superior performance
• No punchdown tool is required.
• Comes with an optional termination tool which works to reduce termination time by 25%.
• Ideal for high volume installations.
• Can be re-terminated a minimum of 20 times.
• Red termination cap designates Category 5e performance and provides positive strain relief; helps control cable bend radius and securely retains wires
• Terminate 4-pair, 22 – 26 AWG, 100 ohm, solid or stranded shielded twisted pair cable
• Can be clearly identified with optional labels and icons
• Compatible with Mini-Com® Modular Patch Panels, Faceplates, and Surface Mount Boxes

• Mini Com TX5e Shielded Jack Modules Data Sheet
