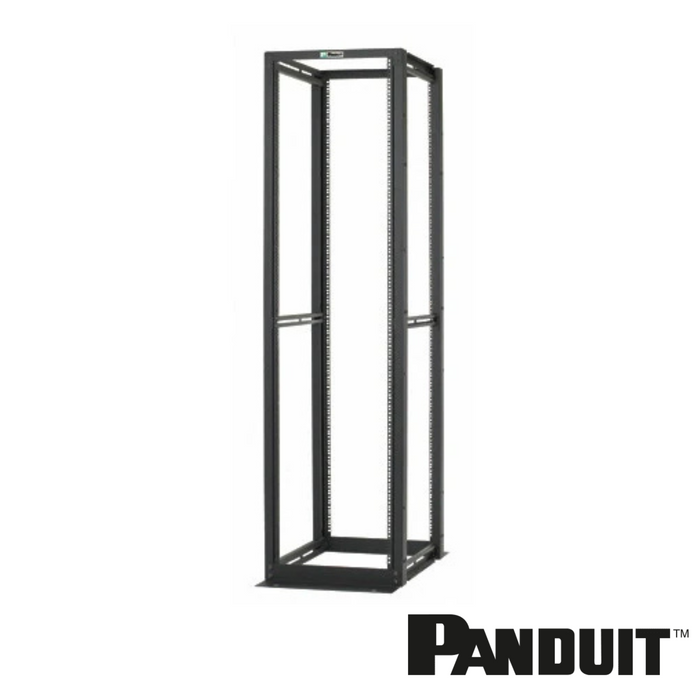

Panduit 4 Post 19 Inch Cage Nut Rail Rack Selector

PANDUIT 4 Post 19-inch EIA rack with Cage Nut Rails

The Panduit 4 Post Rack System is designed to support network equipment found in data center environments. The rack combines the stability of a cabinet with the accessibility of an open rack to provide the user with maximum flexibility when designing the network layout.

Four steel vertical posts and adjustable front and rear mounting rails provide the required strength and flexibility needed to work with various types of active equipment. The open design allows for maximum airflow in and around the rack. The 4 Post Rack System is part of a complete rack and cable management system that manages, protects, and showcases your network investment.

• Available in 42, 45 and 52RU high.
• This selector is for Cage Nut Rails. Threaded rail versions also available.
• 19" rack mounting , 591mm (23.3") wide
• Available in 584mm (23"), 762mm (30"), 914mm (36") and 1054mm (41.5") deep.
• Independent adjustable front and rear mounting rails
• Support equipment mounting depths from 3" to 41.5" and provide ventilation path for side ventilated switches for greater system flexibility
• Welded steel construction 2500 lbs. load capacity provides greater stability
• Numerical rack unit identification
• Allows for quick location of rack spaces speeding installation of rack mount items
• Fully bonded structure Two-hole ground lug attachment simplifies grounding to assure proper grounding technique
• Weld nut construction Eliminates the need for a second wrench, increasing speed and ease of assembly
• Multiple options for mounting accessories
• Accessories such as POU, spool brackets, zero RU brackets mount on posts or rails for greater application flexibility
• Universal equipment rails Rack unit identification can be set either “numbers up” or “numbers down” by flipping rail positions.

• Panduit 4 Post Rack System Data Sheet
