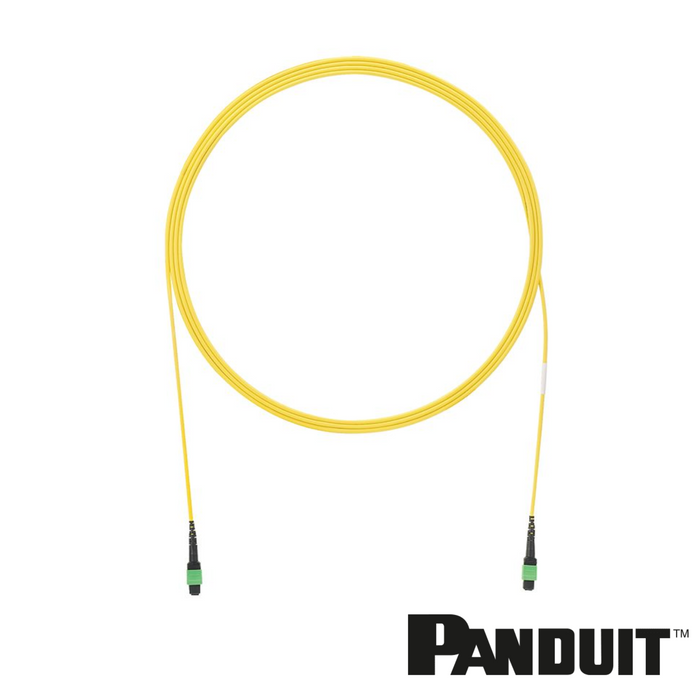

Panduit OS2 12F Panmpo™ Female to Female interconnect Cable Assemblies

PanMPO™ Interconnect Round Cable Assemblies

PanMPO™ Interconnect Round Cable Assemblies are pre-terminated 12-fiber cable assemblies that are used in high-density network applications. These cable assemblies are used with pre-terminated cassettes such as the HD Flex range in main and horizontal cabling distribution areas.

• PanMPO™ Multimode and MPO Singlemode Interconnect Cable Assemblies are pre-terminated and 100% factory tested

• Test results are provided with each assembly

• The 3.0mm round interconnect cable provides high
flexibility and tight bend radius for easy installation and
cable management

• The PanMPO™ Connector allows rapid gender and polarity change in the field

• Meets or exceeds ANSI/TIA-568.3-D and TIA/EIA-604
(FOCIS-5)

• Maximum connector insertion loss:
Singlemode MPO, Standard IL = 0.75dB;
Multimode MPO, Standard IL = 0.5dB, Optimised IL = 0.35dB, Ultra IL = 0.25dB

• Minimum connector return loss:
Singlemode MPO: 55dB
Multimode OM4 MPO: 26dB

• RoHS Compliant
