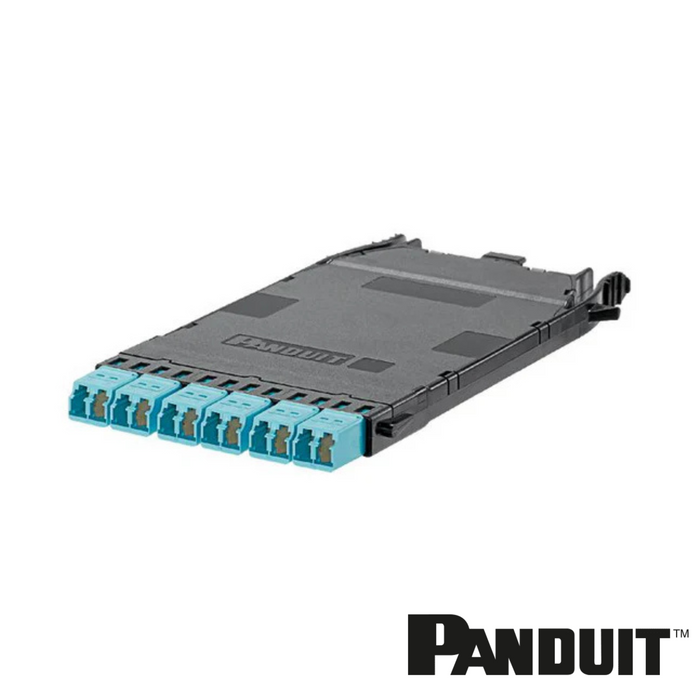

HD Flex™ OM4+ Fiber Optic MPO to LC Cassettes

HD Flex™ Fiber Optic Cassettes offer a wide array of deployment options to support both Ethernet and Fibre Channel networks.

Cassette types are available with:

·         1 MPO to 6 duplex LC connectors, (6-port)

·         1 MPO, 2 MPO, and 3 MPO to 12 duplex LC connectors (12-port)

·         1 MPO to 4 duplex LC connectors to break out parallel optics applications (4-port)

·         6-port duplex LC cassettes for splice terminations

·         6-port MPO and duplex LC fiber adapter panels (FAP) are also available

Features

·         Compatible with HD Flex™ Rack Mount Enclosures, Panels, and Zero RU Brackets

·         LC adapters include integral shutters for dust protection and VFL light identification

·         Low insertion loss of 0.5dB per optimized cassette, 0.35dB for ultra cassettes

·         Return loss >26dB (multimode)

·         Adapter housing colours follow ANSI/TIA-568.3-D suggested colour identification scheme

·         Cassettes accessible from the front or back to streamline installation and migration from 10G to 40G/100G and beyond

·         Performance test data provided with each cassette

·         Lifetime traceability of test data to a QC numbers on each fibre cassette
