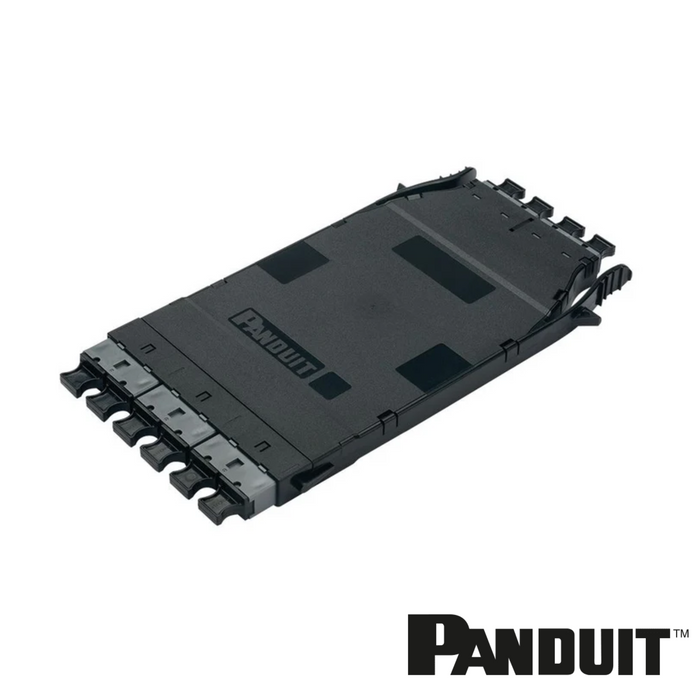

HD Flex™ OM4 Dark Fibre Conversion Cassette

HD Flex™ Dark Fibre Conversion Cassettes are used to convert fibre cabling systems based upon multiples of 12 fibres to an 8 fibre system used by applications requiring parallel optics (e.g. 40GBASE-SR4, 100GBASE-SR4, etc).

Features

·         The cassettes utilise 12 fibre MTP connectivity in the rear of the cassette for mating to 12 fibre trunks and provide a breakout to 8 fibre MTP ports in the front.

·         The wiring in the 2 x 3 conversion cassette combines the 4 unused fibres from the two 12 fibre trunks (on the back of the cassette) into a third 8 fibre port (on the front of the cassette).

·         HD Flex™ Dark Fiber Conversion Cassettes are also offered in 4 x 6 cassettes in which four 12 fibre trunks are converted into six 8 fibre ports.

·         Cassettes are configured for polarity as a TIA-568 Type-A or Type-B.

Application

Application areas include key elements as specified in Data Centre Cabling Standard TIA-942 cross connects in main, horizontal, and equipment distribution areas.

Specification

·         Front Connectivity: 8-fiber MTP adapter(s) with male ferrules (pins) and PC Polish

·         Rear Connectivity: 12-fiber MTP adapter(s) with male ferrules (pins) and PC Polish

·         Fiber Types: Multimode: OM4 50/125μm

·         Fiber Count: 24 and 48

• Panduit HD Flex Cassette Data Sheet
• Panduit HD Flex Ordering Guide
