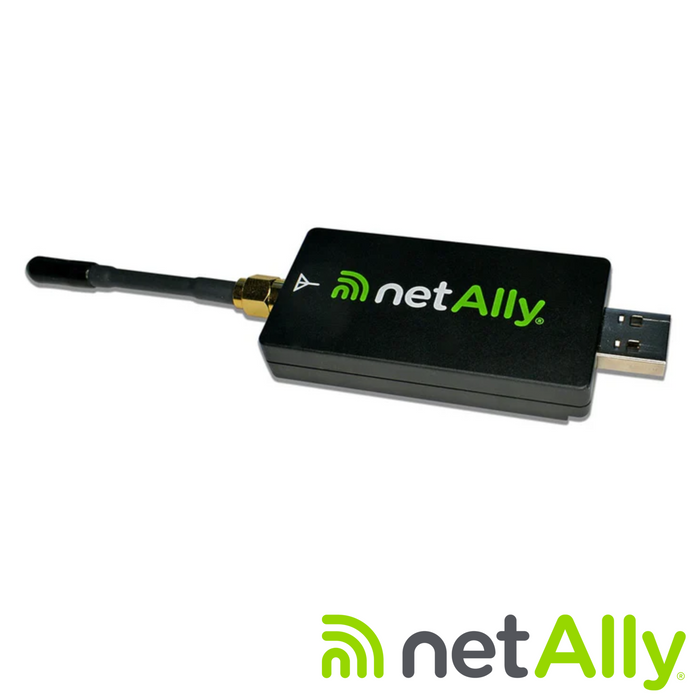

NXT Portable Spectrum Analyzer NXT-1000
USB based 2.4GHz/5.0GHz spectrum analyzer for AirCheck G3 or EtherScope nXG
Trying to pinpoint the source of Wi-Fi interference on a wireless network is hit or miss with the wrong tools. Through the use of the NXT-1000 Portable Spectrum Analyzer, both the AirCheck G3 and EtherScope nXG offer a comprehensive view of RF interference and its impact on the wireless network’s overall performance.
Simplify interference troubleshooting by providing visibility
into the 2.4GHz and 5.0GHz spectrum bands
• Locate any Wi-Fi or non-Wi-Fi interference sources operating in the RF environment
• Prioritize Wi-Fi interference troubleshooting activities and reduce time to locate and fix wireless network issues
• Secure the Wi-Fi network by inspecting No Wireless Zones and detecting and locating intentional RF interference sources such as RF jammers.
Specifications
| General | Description |
| Frequency range |
2.400 to 2.500 GHz 5.145 to 5.860 GHz |
| Frequency Resolution | 2.4 GHz: 333 KHz 5.0 GHz: 1.665 MHz |
| Amplitude Range |
2.4 GHz: -95 to 0 dBm |
| Amplitude Resolution | 0.5 dBm |
| Amplitude Accuracy | +/- 0.5 dBm |
| Antenna Port | RP-SMA Connector |
| Sweep Time |
2.4 GHz: 0.25s |
| USB Host Interface | USB Type A |
| DC Power | Voltage supply 5 volts: 0.33 Watts Max |
| Adapter Specifications | Width 30.8 mm; Length 81.9 mm; Height 11.5 mm; Weight 18 grams (without antenna) 23 grams (with antenna); Operating Temperature: 0° to 45° C (32°F to 113°F) |
