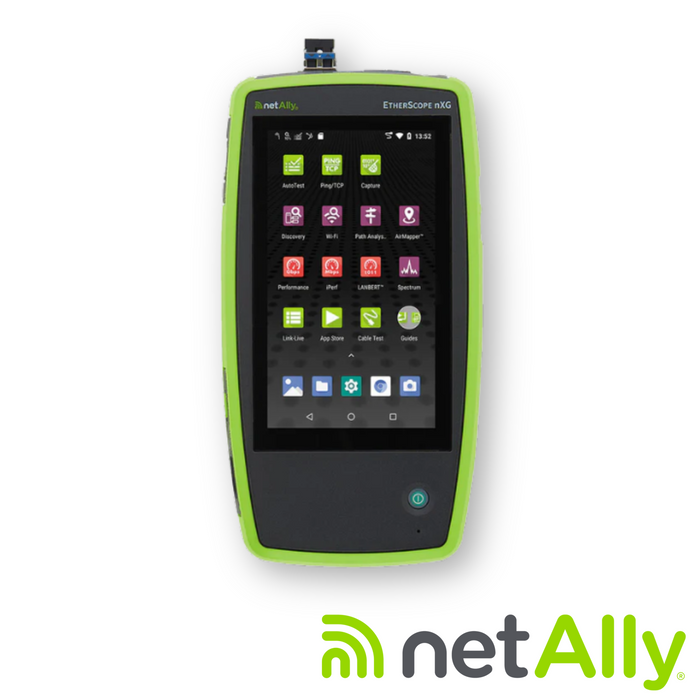

EtherScope nXG
Ethernet Network Tester & WiFi Diagnostics Tool
Taking on the complexity of ever-changing access networks, EtherScope nXG is a powerful network tester & WiFi 6/6E diagnostics tool that helps engineers and technicians to quickly deploy, maintain, monitor, analyze and secure WiFi, Bluetooth/BLE and Ethernet access networks.
-
Verify up to 10G Ethernet link performance for critical servers, key end devices, and validate WiFi network performance.
-
Supports LANBERT™ Media Qualification testing to quickly validate if your existing cable plant can support higher speeds.
-
Portable network analyzer for WiFi 6/6E surveying (with AirMapper™ Site Survey), troubleshooting, diagnostics, and security audits.
-
Supports 2.4GHz and 5GHz spectrum analysis with the optional NXT Portable Spectrum Analyzer adapter.
-
Automatically discover and instantly generate a topology map of your wired and WiFi networks using Link-Live™ reporting and analysis platform.
-
Enables remote engineers to troubleshoot and collaborate with on-site technicians to solve tough problems at remote sites, saving time and cost of travel.
Speed up your workflows and improve end user experience with the industry’s first handheld analyzer for Ethernet network troubleshooting and analysis, WiFi 6/6E surveying, and security audits.
EtherScope nXG Portable Network Expert Includes:
EXG-300E mainframe (PARTIAL TRI-BAND) with one year of AllyCare support (EXG-300E-1YS), Li-ION battery, G3-PWRADAPTER, SFP+MR-10G850, Inline RJ-45 coupler, WIREVIEW 1, Quick Start Guide, and Shoulder Bag.
Key Features
-
Use advanced testing apps and purpose-built hardware
Quickly install, test, verify, and troubleshoot technology upgrades, NBASE-T, 10G, Bluetooth/BLE, and WiFi 6/6E networks with advanced testing apps and purpose-built ruggedized hardware. -
Verify and validate up to 10G Ethernet network performance
Verify up to 10G Ethernet link performance for critical servers, uplinks, key end devices; uses LANBERT to easily and quickly assess the quality of transmission and available bandwidth. -
Easily document complex network deployments
Empower technicians who may not have access to network management systems or other engineer-level tools to assess and document complex network deployments with multiple VLANs and WiFi SSIDs. -
Faster and easier WiFi and Bluetooth/BLE surveys with AirMapper™ Site Survey
Supports both active and passive surveys to help validate client performance and roaming. Create and share visual heatmaps* of key performance metrics via Link-Live™ or AirMagnet® Survey PRO. -
Attain complete device visibility and detect network changes
Automatically discover and instantly map* your wired Ethernet and WiFi networks in Link-Live; identifies network changes, discovers wireless security threats, and keeps network documentation up to date. -
Centralized test data management, enables teamwork and collaboration
Seamlessly consolidate and manage field test data and integrate with network management systems via Link-Live™ collaboration, reporting, and analysis platform
Specifications
General
| Media Access; Copper | Copper: 10M/100M/1G/2.5/5G/10G Fiber SFP Adapters: 1G/10GBASE-X |
| Supported IEEE Standards | Wired: 802.3/ab/ae/an/bz/i/u/z WiFi: 802.11a/b/g/n/ac/ax PoE: 802.3af/at/bt, Class 0-8 and UPOE |
| Cable Tests |
|
| EtherScope nXG has two internal Wi-Fi Radios |
Testing – 2×2 Tri-band 802.11ax wireless radio, IEEE 802.11a/b/g/n/ac/ax compliant Management – |
| SD Storage and Memory |
Supports Micro SD card storage – up to 32GB supported Approximately 8 GB available for storing test results and user applications |
| Dimensions | 4.05 in x 7.67 in x 2.16 in (10.3 cm x 19.5 cm x 5.5 cm) |
| Weight | 0.76 kg |
| Battery | Removable, rechargeable lithium-ion battery pack (7.2 V, 6.4 A, 46 Wh) |
| Battery Life | Typical operating life is 3-4 hours; Typical charge time is 3 hours |
| External AC Adapter/Charger |
USB Type C 45-W adapter: AC Input Power 100-240 V, 50-60 Hz, DC Output Power 15 V (3 A) RJ45: 802.3bt PoE |
| Display | 5.0 inch color LCD with capacitive touchscreen (720 x 1280 pixels) |
| Keypad | N/A |
| LEDs | N/A |
| Host Interface |
RJ-45 Cable Test and Management Port |
NPT Reflector Software Agent
| Supported Operating Systems | Windows® 8.1, Windows® 10, Windows® 2008-R2, Windows® 2012, Windows® 2012-R2,
|
| Minimum Hardware Requirement Processor | 1GHz or better CPU |
| RAM | 1 GB or more RAM |
| Hard Disk | 1 GB available space |
| Network Interface | Ethernet and/or Wi-Fi |
Antennas
| Internal WiFi Antennas | Minimum gain 2.0 dBi peak in the 2.4 GHz band, 1.5 dBi peak in the 5 GHz band, and 2.7 dBi peak in the 6 GHz band. |
| External Directional Antennas | Antenna, frequency range 2.4 to 2.5 GHz, 4.9 to 5.9 GHz,and 6.0 to 7.1 GHz Minimum gain 6.4 dBi peak in the 2.4 GHz band, 8.9 dBi peak in the 5 GHz band, a 8.6 dBi peak in the 6 GHz band |
Got any questions? Call 01403 754233 during office hours to speak to a team member about the EtherScope nXG
*Active AllyCare Premium Support (1Yr included) required for in-depth AirMapper visualizations and filtering, automatic problem identification via InSites™ intelligence, detailed topology map controls, and advanced reporting options in Link-Live.
