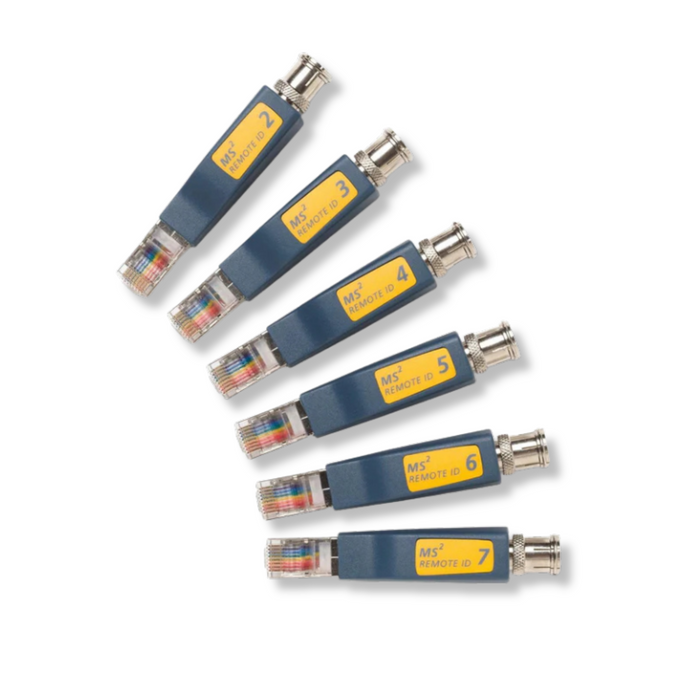

MicroScanner 2 Cable Verifier - MS2-IDK27
Fast delivery from stock MOQ's apply on some items
Need some help? Call us on 01403 754233
The MicroScanner 2 Cable Verifier presents a revolutionary change in voice, data, and video cable testing. It starts by taking results from what was four different test modes and displaying them all at once – graphical wiremap, pair lengths, distance to fault, cable ID, and far end device. What’s more, its integrated RJ11, RJ45, and coax cable test ports support virtually any type of low-voltage cable testing with no need for awkward adapters. The end result is reduced test time and technician error. That makes high-quality installations more efficient than ever.
- Revolutionary Interface – graphical wiremap, length, cable ID, and distance to fault displayed on one screen.
- Multimedia Support – tests all common media types including RJ11, RJ45, Coax, with no need for adapters
- IntelliTone Toning – trace virtually any cable or wire pair with IntelliTone digital and analogue toning
- VDV Service Detection – verifies today’s media services, including 10/100/1000 Ethernet, POTS, and PoE
- Rugged Housing – integrated rubber holster enhances grip and makes it durable enough for the toughest jobs
- Oversized Display – large, backlit LCD makes results crystal clear whether in bright sunshine or in a dark closet
Perfect as a copper cable tester, copper cabling troubleshooting tool and as a wiremap tester.
Features
- Revolutionary Interface
- Multimedia Support
- IntelliTone Toning
- VDV Service Detection
- Rugged Housing
Specifications
|
Test Connectors |
Twisted-pair: UTP, FTP, SSTP 8-pin modular jack accepts 8-pin modular (RJ45) and 4-pin modular (RJ11) plugs; Coax: F-connector for 75 Ω, 50 Ω, 93 Ω cables |
|
Cable Tests |
Length (460 m or 1500 ft. with resolution to 0.3 m or 1 ft.), wiremap to TIA-568A/B standards, remote ID locators; displays results on one screen |
|
Tone Generator |
IntelliTone digital tone: [500 KHz]; analog tones: [400Hz, 1KHz] |
|
PoE Detection |
Solicits and detects the presence of 802.3af compatible PoE (Power over Ethernet) devices |
|
Ethernet Port Test |
Advertised speed of 802.3 Ethernet ports (10/100/1000) |
|
Power Source |
Battery type: 2 AA (NEDA 15A, IEC LR6) alkaline batteries |
|
Dimensions |
3 in x 6.4” x 1.4 in (7.6 cm x 16.3 cm x 3.6 cm) |
|
Weight |
0.8 lbs. (363 grams) |
|
Display |
Monochrome liquid crystal display (LCD) with backlight |
|
Calibration |
User-configurable NVP for twisted pair and coax; determines actual NVP with known length of cable |
|
Operating Temperature |
32 °F to 113 °F (0 oC to 45 oC) |
|
Storage Temperature |
-4 °F to +140 °F (-20 oC to +60 oC) |
|
Operating Humidity |
90 % (50 °F to 95 °F; 10 oC to 35 oC) |
|
(%RH without condensing) |
75 % (95 °F to 113 °F; 35 oC to 45 oC) |
| Shock Vibration | Meets requirements for MIL-PRF-28800F for Class 2 random vibration; 1 m drop test with and without wiremap adapter attached |
| Safety | EN 61010-1 2nd Edition |
| Altitude | 4000 m; Storage: 12000 m |
| EMC | EN 61326-1 |
| Agency Certifications | N10140 C-Tick EMC standard; FCC Part 15 Class A; CE European Union Directives Pollution Degree 2 |
| Warranty | One year |
