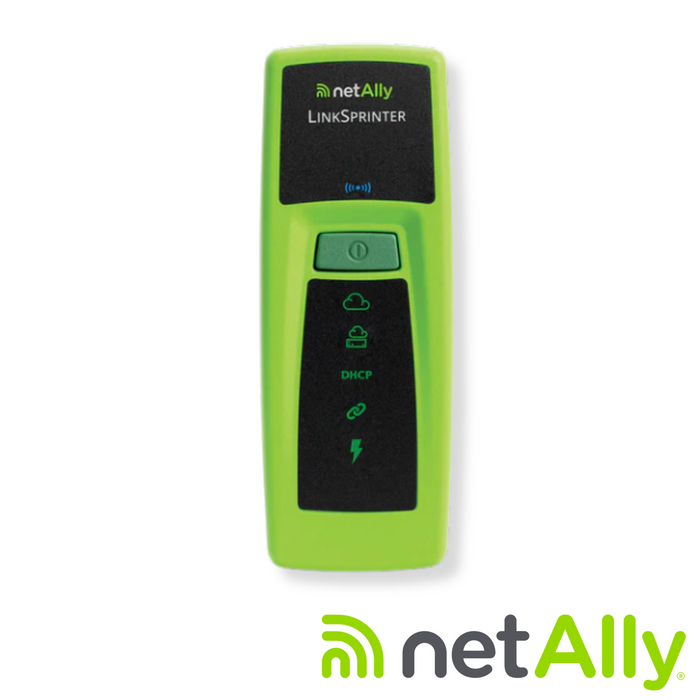

LinkSprinter 300
LinkSprinter 300, the pocket network tester from netAlly provides simple,10-second network connectivity tests on copper Ethernet links. Making it the ideal network tester of choice for frontline staff.
Automated reporting to the included Link-Live Cloud Service Essentials ensures network connectivity status and path information is documented for every link.
- Power Over Ethernet (PoE) Tester diagnoses and tests Power over Ethernet (PoE), Link to the switch, DHCP, Gateway, and Internet connection
- Get VLAN, switch name, and port information via CDP/LLDP/EDP for your managed switches
- Expert network troubleshooting techniques delivered to colour graded LEDs
- Automated reporting to Link-Live Cloud Service
- Get detailed test results sent directly to your email
- Proxy support
Download the NetAlly Linksprinter Pocket Network Tester specification sheet HERE.
Features
- Blink Light on Switch Port
- Cable Test
- Speed and Duplex
- LinkSprinter Team Packs
| LinkSprinter Features by Model | 300 |
| Diagnose and test Power over Ethernet (PoE), Link to the switch, DHCP, Gateway, and Internet connection | X |
| Get VLAN, switch name, and port information via CDP/LLDP/EDP for your managed switches | X |
| Expert network troubleshooting techniques delivered to color graded LEDs | X |
| All test results are sent to the Link-Live Cloud Service | X |
| Get detailed test results sent directly to your email | X |
| Access your test results through your phone's browser by connecting to the built-in Wi-Fi access point | X |
| Mobile App for Android (search "LinkSprinter" on google play) | X |
| Proxy support | X |
| See cable fault and distance to open or short | X |
| Blink light on switch port | X |
Specifications
| General | |
| Dimensions | 4.36” x 1.6” x 1.28” (11.07 cm x 4.06 cm x 3.25 cm) |
| Weight with batteries | Model 300: 0.255 lb (0.116 kg) |
| Power | 2 AA Alkaline, or Power over Ethernet |
| Environmental | |
| Operating Temperature and Relative Humidity | 32°F to 122°F (0°C to 50°C ), Relative Humidity 5% to 90% Non-condensing |
| Storage Temperature | -4°F to 140°F (-20°C to 60°C) |
| Shock and Vibration | Random 2g, 5Hz – 500 Hz (class 2), 1 m drop |
| Safety | CAN/CSA-C22.2 No. 61010-1-12, UL Std. No. 61010-1 (3rd Edition), IEC61010-1:2010, Pollution degree 2 |
| Altitude | Operating: 13,123 ft. (4,000 m) Storage: 39,370 ft. (12,000 m) |
| EMC | EN 61326-1:2006 |
| Certifications and Compliance | Conforms to relevant European Union directives Conforms to relevant Australian standards Listed by the Canadian Standards Association Conforms to relevant FCC standards |
| Wi-Fi Hot Spot | |
| Specification Compliance | IEEE 802.11b/g |
| Frequency Channels | 802.11 Channels 1 thru 11 default is 11 |
| Operating Frequency | 2.412 ~ 2.484 GHz, ISM Band |
| Regulatory Domain | EN 301 489-1/17 |
| Browser | Internet Explorer 9.0, Firefox 3.6, Chrome 5.0, Safari 5.1 (minimum revision) |
