Leviton Cat6A F/FTP Shielded 23AWG Copper Cable Euroclass Cca 500M Green
SKU BR-AC6F-FTP-CCA-500GN
by Leviton
Fast delivery from stock MOQ's apply on some items
Need some help? Call us on 01403 754233
LEVITON Category 6A F/FTP 23AWG Cca Green 500m Copper Cable
- Cables exceed Category 6A performance standards.
- Rated to 500MHz and suitable for use in all Class EA structured wiring cable systems.
- Applications supported include 10 Gigabit Ethernet, Gigabit Ethernet, Power over Ethernet, and broadband video transmissions at frequencies up to 500MHz.
- 23 AWG solid annealed copper wire

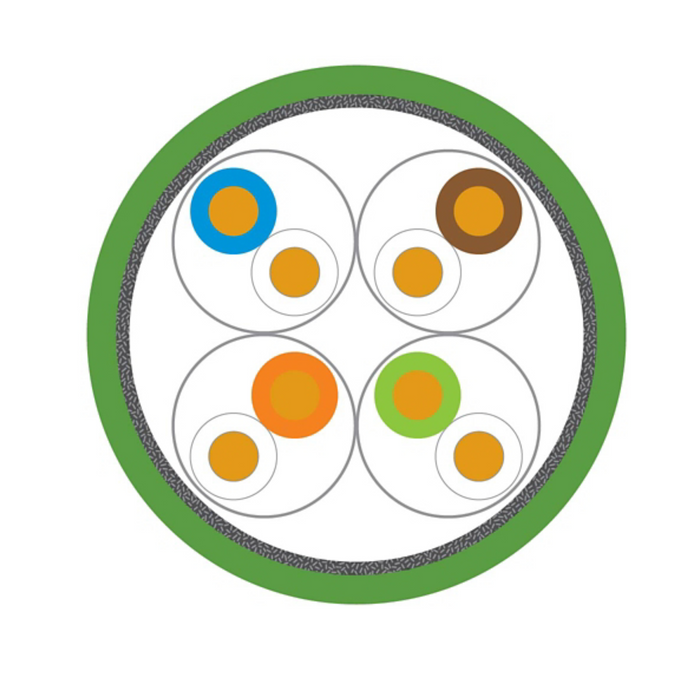

- 4 twisted pairs individually screened and cabled together – providing EMI immunity
- Overall aluminum polyester screen – for improved shielding efficiency and increased heat dissipation
- Designed to support all Class EA protocols including 10GBASE-T
- Enhanced HFFR-LS* material meets the requirements of the Construction Products Regulation (CPR) EuroClass Cca
- Green jacket to identify EuroClassification level Cca
- Included in the Leviton Limited 25-Year System Warranty when used in conjunction with Leviton copper connectivity.
System warranties available for qualified projects installed by certified contractors - Supplied on 500m Drum
Meets the following standards:
- EN50173-1 and EN 50288-10-1
- ISO/IEC 11801 Class EA, IEC 61156-5
- ANSI/TIA 568.2-D
- Suitable for PoE to IEEE 802.3af, 802.3at, 802.3bt, Cisco UPoE, and Power over HDBaseT™ (PoH) up to 100 watts
