Jonard Multi-Function OTDR, 1310/1550 nm (OTDR-1000)
SKU OTDR-1000
by Jonard
Fast delivery from stock MOQ's apply on some items
Need some help? Call us on 01403 754233
Jonard Professional Multi-Function OTDR, 1310/1550 nm (OTDR-1000)
Jonard Tools’ Multi-function OTDR is the perfect all-in-one handheld device for evaluating FTTx and access network construction and maintenance, identifying fiber breakpoints, measuring cable length, and calculating relative optical power losses. This Multi-function OTDR also features the following:
- Includes 8 different functions for testing and evaluating fiber optic and network cables
- Bright 3.5” color LCD screen makes it quick and easy to evaluate data
- Rubberized hard plastic case is shock-proof and drop-proof for maximum durability
- 600 MB Internal storage with MicroSD/TF card slot for additional memory
- Built-in rechargeable lithium ion battery provides power on-the-go
- Can be charged or connected to a computer for data transfer via included micro-USB cable

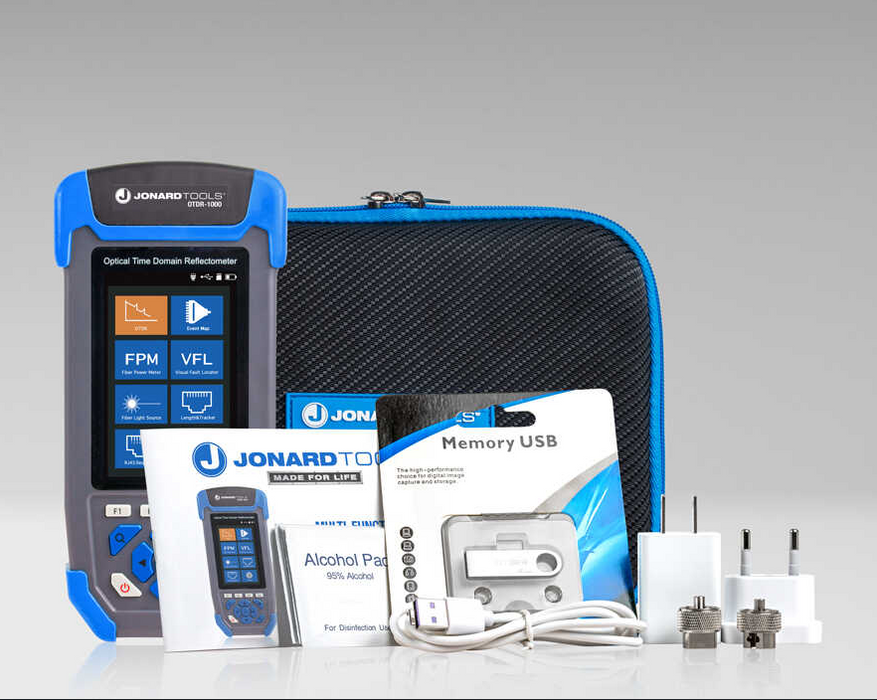

- Includes FC, SC, and LC (PC/UPC) OTDR adapters for fiber optic cables, downloadable software (also featured in the download section of this product page), power cord with plug adapters, alcohol wipes, instruction manual, and carrying case.
| Specifications | |
| Wavelengths | 1310±20nm, 1550±20nm |
| Fibre Type | G.652 SingleMode Fibre |
| Dynamic Range | 24 dB/22 dB |
| Event Blind Zone | 3 m |
| ATT Blind Zone | 8 m |
| Test Range | 500m-60km |
| Pulse Width | 3ns-10us |
| Range Accuracy | ±（1.0 m + Sampling Interval + 0.005％× Test Distance） |
| Loss Accuracy | ± 0.02 dB/km |
| # of Sampling Points | 16 - 128k |
| Sampling Resolution | 0.5m-8 m |
| Reflection Accuracy | ± 3 dB |
| Data Storage | Internal: >600 MB; External: TF Card |
| Laser Safety Level | Class IIIA level |
| File Format | SOR Standard File Format |
| Included Connectors for OTDR | FC, SC, LC (PC/UPC) |
| Dimensions | 26.67 cm x 19.05 cm x 6.35 cm |
| Weight | 0.93Kg |
| UPC # | 810053350669 |
