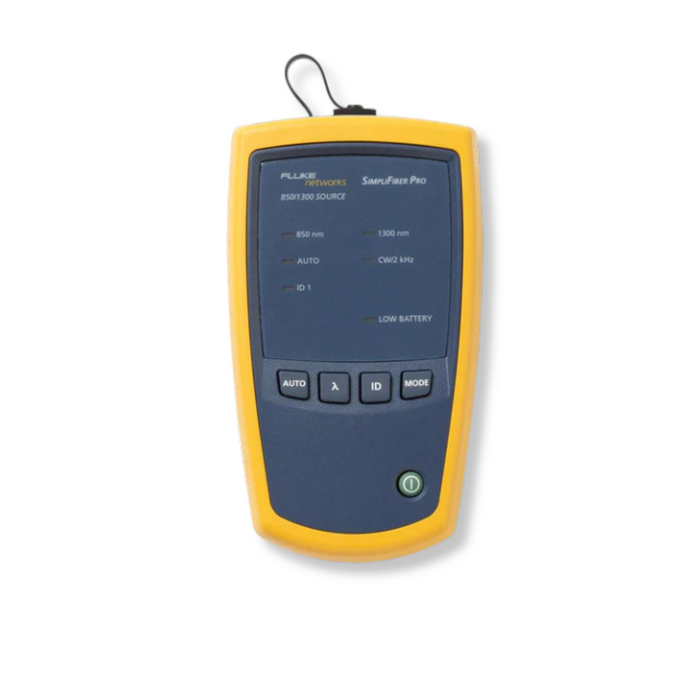

Fluke Networks SimpliFiber® Pro Optical Power Meter - SFMULTIMODESOURCE
SKU SFMULTIMODESOURCE
Fast delivery from stock MOQ's apply on some items
Need some help? Call us on 01403 754233
SimpliFiber® Pro Optical Power Meter
Check the specifications tab for full details.
Got any questions about the Fluke Networks SimpliFiber® Pro Optical Power Meter? Then call one of our team on 01403 756588
Features
- SimpliFiber Pro Kit Configurations
- Fiber Inspection
- Fiber Cleaning
- Results Management
- Verify and Locate Faults
- Unique Capabilities
Specifications
| Environmental Specifications | |
| Operating Temperature | -10º C to 50º C |
| Storage Temperature | -20º C to 50º C |
| Operating Humidity |
|
| EMI, RFI, EMC | Standards compliant1 |
1 Conforms to relevant European Union directives; relevant Australian standards; Listed by the Canadian Standards Association; Complies with 21CFR.1040.10,11, and EN60825-1, 2:2007 (Class 1, Hazard Level 1)
| Multimode Optical Source | |
| Emitter Type | LED |
| Central Wavelength | 850 nm, 1300 nm |
| Wavelength Accuracy |
|
| Spectral Width (FWHM) |
|
| Minimum Output Power | 850/1300 nm: ³ -20 dBm |
| Power Output Stability1 | ±0.1 dB over 8 hours |
| Auto Dual-Wavelength Switching | Yes. Can be enabled/disabled by user. |
| Optical Output Connector | Fixed SC |
| FindFiber Code Generation | Yes. Fixed at ID 1. |
| Modes | CW, 2 kHz modulated, Auto-wavelength |
| Power Requirement | 2 AA Alkaline batteries. |
| Battery Life2 | 40 hrs (typical) |
| Automatic Power Off | 30 minutes (can be disabled by user) |
| Low Battery Warning | Yes, LED blinks |
| Size (L x W x H) | 5.6 in x 3.2 in x 1.6 in (14.2 cm x 8.1 cm x 4.1cm) |
| Weight | 1.8 oz (278 g) |
1 23° C ± 2° C, after 5 minutes warm-up time
2 In auto-wavelength mode, battery life depends on the condition and type of batteries used. Fluke Networks recommends alkaline batteries.
No data sheets available.
