External Splice Closure | Straight-Through | 48 Fibre Capacity

EXTERNAL SPLICE CLOSURE STRAIGHT-THROUGH

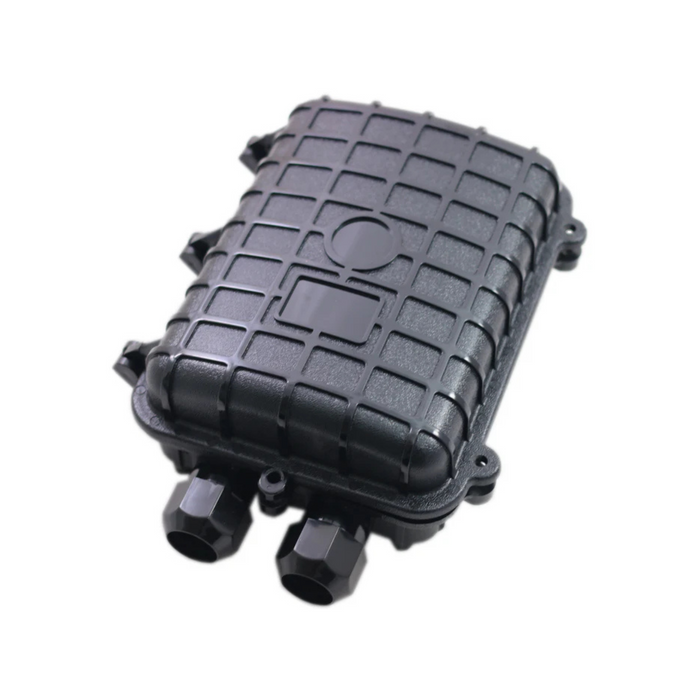

External splice closure for fast, reliable and economical fibre terminations. This compact enclosure is made from robust ABS material and provides an IP 68 rating. It can be direct-buried or mounted on walls, with resistance to UV, vibration, and providing a water tight seal. It also has an excellent temperature range, -40 degrees to +65 degrees for long term reliability.

FEATURES

• Provides a perfect solution for protecting fibre splices from permeation of water.
• Used for underground, aerial, building entrance, pedestal and direct buried applications.
• This closure can accommodate up to 96 cores, which can cover most of the applications in fibre distribution networks.
• FOSC101 has Mechanical and Chemical resistance for all the application areas in fibre networks
• Developed based on proven sealing technology.
• Made of robust ABS parts and special silicon sealing materials.
• The sealing of the closure is achieved by non oxidised special screws.
• The closure kit includes all the necessary accessories–parts for complete closure installation including:
• 1 x 24 fibre splice tray
• 24 x 60mm splice protectors
• 1 x 900mm buffer tubing
• 12 x cable ties
• 2 x cable entry blank plugs
• 1 x allen key
• 1 x abrasive cloth
• 1 x adhesive tape
• 1 x cable entry sealing tape
• Installation instructions

SPECIFICATIONS:

• Size: 280mm x 200mm x 80mm
• Max 4 Trays each up to 24 fibres (96 Fibres)
• 2 Ports (max 14mm cable)
• Accessory Splice Tray type: NNFOSC101TRAY
