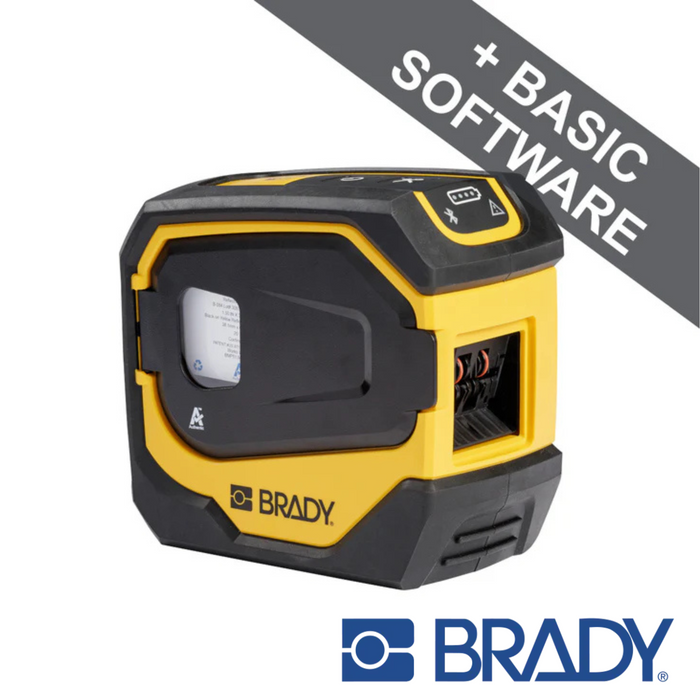

M511 LABEL PRINTER
Work smarter and label larger with the M511:
· Ideal for larger applications – print up to 38.10mm labels
· Less waste – printing can go edge to edge with text, graphics and barcodes
· Internal Li-ION battery supplies longer battery life – providing 8+ hours of battery life and 1000 labels on a single charge
· Durable – resists 1.8m drops, shocks, 115kg crushes and blowing sand and dust
· Prints anywhere – using Bluetooth 5.0 (20m range) which connects up to 5 users simultaneously

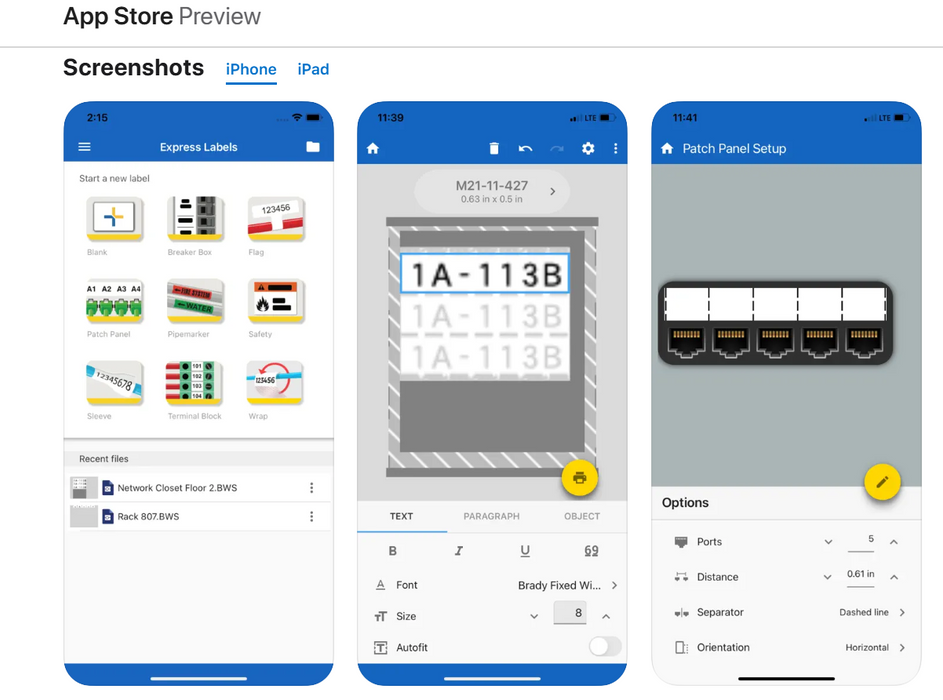

· Express Labels app via Bluetooth or Brady Workstation on a PC allows users to create their own labels including patch panel labels.
· Time and space are saved through the auto label cutter and prints upright or on its side
FEATURES AND BENEFITS
· Auto label cutter cuts and holds the label until it’s ready for use
· High resolution print quality – print sharp, crisp 300 dpi text, images, barcodes and graphics from edge to edge
· Extra protection – view label cartridge and protect it from blowing dust
· Internal Li-ION battery supplies longer battery life – providing 8+ hours of battery life and 1000 labels on a single charge
· Prints anywhere – using Bluetooth 5.0 (20m range) which connects up to 5 users simultaneously
· Prints up to 38.10mm width material
· USB port to charge printer in a vehicle or on a laptop, can also connect to label creation software
TECHNICAL INFORMATION
|
Size - Width (mm) |
162.56 mm |
|
Size - Height (mm) |
152.40 mm |
|
Size - Depth (mm) |
91.44 mm |
|
Weight (kg) |
1.2 kg |
|
Min. Label Width (mm) |
5.97 mm |
|
Dimensions |
162.56 mm (W) x 152.40 mm (H) x 91.44 mm (D) |
|
Materials Supported |
BradyGrip® Polyester, FreezerBondz™ Polyester, Heat-shrink Polyolefin, Metallised Polyester, Nylon Cloth, Polyester, Polyethylene Tag, Polypropylene, Reflective Tape, Repositionable Vinyl, Self-laminating Polyester, Self-laminating Vinyl, StainerBondz™ Polyester, Tamper-resistant Vinyl, Vinyl, Vinyl Cloth, Water Dissolvable Paper |
|
Battery Type |
Internal, not removable, Rechargeable Lithium-ion Battery |
|
Print Technology |
Thermal Transfer |
|
Max. Label Width (mm) |
38.10 mm |
|
Max. Liner Width (mm) |
45.72 mm |
|
B- Numbers supported |
B-109, B-145, B-342, B-351, B-403, B-412, B-414, B-417, B-422, B-425, B-425A, B-427, B-428, B-432, B-461, B-481, B-482, B-483, B-483A, B-488, B-490, B-492, B-494, B-498, B-499, B-584, B-595, B-7425, B-7641 |
|
Compatible Media |
M4-, M4C-, M5-, M5C- |
|
Phones & Tablets Supported |
Android devices with Android OS 6+, iPhone 5S or newer with iOS 10+ |
|
Software Compatibility |
Brady Workstation, Express Labels Mobile App, Windows based driver for 3rd party software use |
Further technical information is available on M511 Portable Label Maker Datasheet
