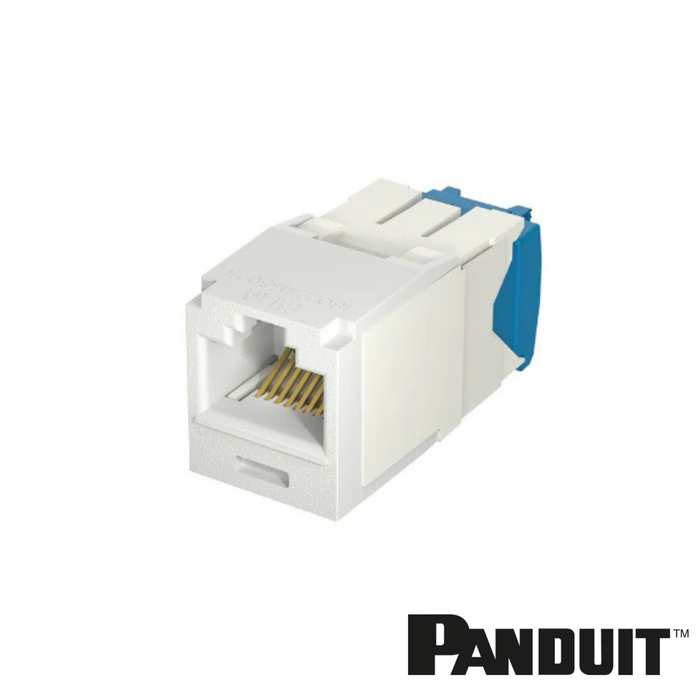

PANDUIT Mini-Com® Cat6a RJ45 Universal TG Module | UTP

Panduit Mini-Com® TX6A™ 10Gig UTP Jack Modules with MaTriX Technology

The Mini-Com® Cat 6A UTP RJ45 TG Jack Module is designed to terminate 4-pair, 22-26 AWG twisted pair cable. Each module is 100% factory tested to exceed industry standard performance requirements. TG style termination eliminates the need for a termination tool. Each jack is individually serialised for traceability and is compatible with Mini-Com Modular Patch Panels and Faceplates.

Mini-Com® TX6A™ 10Gig UTP Jack Modules are a component of the TX6A™ 10Gig UTP Copper Cabling System with MaTriX Technology. This end-to-end system provides a cost-effective medium for ensuring that network bandwidth needs are easily met today and in the future, efficiently and reliably meeting data transmission needs.

Features and Benefits:

·         Cat6a RJ45 10GB-S, 8 position, 8 wire universal module.

·         Wide range of colours available.

·         45 degree angle wire caps available (purchase separately) for restricted space at the rear of the module.

·         Exceeds requirements of ANSI/TIA-568-C.2 Category 6A, IEEE 802.3an-2006, and ISO 11801 Class EA channel standards

·         Exceeds ANSI/TIA-568-C.2 Category 6A and IEC 61156-5 Category 6A component standards

·         Supports high bandwidth applications like 10GBASE-T and HDBaseT and is ideal for running next generation Power over Ethernet (POE++)

·         Meets requirements of IEEE 802.af and IEEE 802.3at for PoE++ applications

·         Utilises patent-pending enhanced Giga-TX™Technology for jack terminations which optimises performance by maintaining cable pair structure and eliminating conductor untwist

·         Contacts plated with 50 microinches of gold for superior performance

·         No punchdown tool required; termination tool (EGJT) ensures conductors are fully terminated by utilising a smooth forward motion without impact on critical internal components for maximum reliability

·         Can be re-terminated a minimum of twenty times

·         Blue termination cap designates Category 6A performance and provides positive strain relief; helps control cable bend radius and securely retains wires

·         Terminate 4-pair, 22 – 26 AWG, 100 ohm, solid or stranded twisted pair cable

·         Universal termination cap is color-coded for T568A and T568B wiring schemes

·         Accepts 6 and 8-position modular plugs without damage

·         Can be clearly identified with optional labels and icons

·         Compatible with Mini-Com Modular Patch Panels, Faceplates, and Surface Mount Boxes
