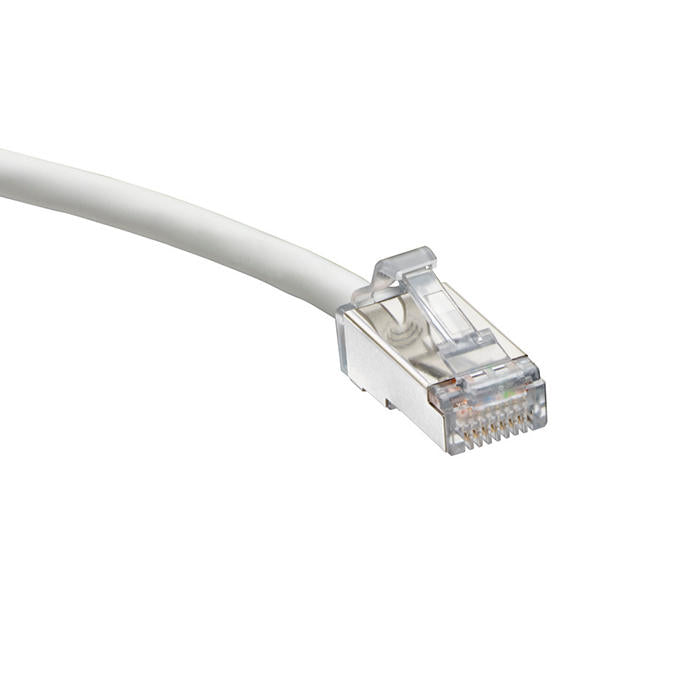

LEVITON Cat 6A High-Flex Patch Cords
Are designed to be used in 10 Gigabit applications for all frequencies from 1 to 500 MHz. Patch cords offer flexible, high density patching. Cables support high-speed data applications. They reduce patch cord density in a 24-port patch panel by 25 percent when compared to typical Cat 6A patch cords.
FEATURES
· Available in white, yellow, grey, black, red, green and blue
· Available in lengths from 1-50 feet (0.3 to 30metres)
· Power over Ethernet compatible
· Accommodate use in high-density switches, routers, and other electronics
· Bend radius is a narrow 19mm, versus 25mm for typical Cat 6A patch cords
DESIGN CONSIDERATIONS
· Designed to provide connectivity solution for 10 Gigabit applications
· Available in a variety of colours for colour-coding or organisation
· Channel Length: supports 96-metre channels that include 90-metre permanent links
· Supports 93-metre channels with 10 metres of patch cords included in the channel
· Under PoE at 90 watts, maximum bundle size is 12 cables with a separation of 38mm inches from outer edge to outer edge of cable bundles for 28 AWG cables installed in air, and a maximum ambient temperature of 45 ºC, as defined in TIA TSB-184-A
STANDARDS & REGULATIONS
· ANSI/TIA-568.2-D, ANSI/TIA-1096-A, ISO/IEC11801-1
· RoHS compliant
· IEEE 802.3bt PoE: Type 1 (15.4 W) formerly 802.3af, Type 2 (30 W) formerly 802.3at, Type 3 (60 W), Type 4 (90 W) Cisco UPoE (60 W), UPoE+ (90 W) Power over HDBaseT™ PoH (95 W)
· IEC 60332-1 (LSHF/LSZH)
· UL 94V-0
MECHANICAL SPECIFICATIONS
· Dimensions: 0.3 - 15 m
· Materials: 28-gauge, stranded U/FTP, standard modular non-keyed, 8-position, 8-conductor plug, 94V-0 rated
· Cable Outer Diameter: 4.7 mm
· Bend Radius: 18.8 mm
